This chapter tells you how to administer and configure LoadLeveler. In general, the information in this chapter applies to both serial and parallel jobs. For more specific information on parallel jobs, see Chapter 6. "Administration Tasks for Parallel Jobs".
After installing LoadLeveler, you need to customize it by modifying both the administration file and the configuration file. The administration file optionally lists and defines the machines in the LoadLeveler cluster and the characteristics of classes, users, and groups. The configuration file contains many parameters that you can set or modify that will control how LoadLeveler operates.
In order to easily manage LoadLeveler, you should have only one administration file and one global configuration file, centrally located on a machine in the LoadLeveler cluster. Every other machine in the cluster must be able to read the administration and configuration file that are located on the central machine. LoadLeveler does not prevent you from having multiple copies of administration files but you need to be sure to update all the copies whenever you make a change to one. Having only one administration file prevents any confusion.
You can, however, have multiple local configuration files that specify information specific to individual machines. For more information on the global and local configuration files, refer to "Configuring LoadLeveler".
Before working with these two files, you should read the following planning considerations to help you decide how to modify the files.
For example, if there are two machines in your LoadLeveler cluster, machine_1 and machine_2, user john must have the same user ID and login group ID in the /etc/passwd file on both machines. If user john has user ID 1234 and login group ID 100 on machine_1, then user john must have the same user ID and login group ID in /etc/passwd on machine_2. This ensures that the getuid system call returns the same user ID on both systems. (This allows a job to run with the same group ID and user ID of the person who submitted the job.)
If you do not have a user ID on one machine, your jobs will not run on that machine. Also, many commands, such as llq, will not work correctly if a user does not have a user ID on the central manager machine.
However, there are cases where you may choose to not give a user a login ID on a particular machine. For example, a user does not need an ID on every submit-only machine; the user only needs to be able to submit jobs from at least one such machine. Also, you may choose to restrict a user's access to a schedd machine that is not a public scheduler; again, the user only needs access to at least one schedd machine.
Setting up LoadLeveler involves defining machines, users, and how they interact, in such a way that LoadLeveler is able to run jobs quickly and efficiently. If you have a good deal of experience in system administration and job scheduling, you should begin by reading "Expert". If you are relatively new to job scheduling tasks, begin by reading "Intermediate or Beginner"
No matter what your level of experience, it will prove worthwhile to read all the information in this chapter at some point to help you optimize LoadLeveler's performance.
If you are experienced in UNIX system administration but are unfamiliar with job scheduling systems or your experience is limited, you may want to start with the section "Administration File Structure and Syntax" and read to the end of this chapter. This section provides a relatively slow, step-by-step approach to administering LoadLeveler. If you would rather start up LoadLeveler quickly using mostly default characteristics, follow the procedures in "Quick Set Up"
If you are very familiar with UNIX system administration and job scheduling, and have some idea how you want to distribute your workload, go to "Quick Set Up". Each step in this short procedure refers you to a detailed discussion of the task at hand. The sample configuration and administration files included in the samples subdirectory (and shown in Appendix C. "Sample Files") also provide assistance.
If you plan to run interactive jobs using the Parallel Operating Environment (POE) running under LoadLeveler, see "Setting Up to Allow Users to Submit Interactive POE Jobs".
If you are very familiar with UNIX system administration and job scheduling, follow the steps listed in this section to get LoadLeveler up and running on your network quickly in a default configuration. For this set up, it is recommended that you use loadl as the LoadLeveler user ID. Afterward, you can fine tune your configuration for greater efficiency when you become more familiar with the details of LoadLeveler.
Refer to "Step 1: Define LoadLeveler Administrators" for more information.
machinename: type = machine central_manager = true
Do not specify more than one machine as the central manager. Also, if during installation, you ran llinit with the -cm flag, the central manager is already defined in the LoadL_admin file because the llinit command takes parameters you entered and updates the administration and configuration files. See "Step 1: Specify Machine Stanzas" for more information.
llctl -h hostname start
Issue this command for the central manager machine first. See llctl - Control LoadLeveler Daemons for more information.
You can also issue the following command to start LoadLeveler on all machines beginning with the central manager. Before you issue this command, make sure all the machines are listed in the administration file. This command only affects machines that are defined in the administration file.
llctl -g start
llctl uses rsh or remsh to start LoadLeveler on the target machine. Therefore, the administrator using llctl must have rsh authority on the target machine.
This section explains how to perform administration tasks, and includes a step-by-step approach to administering LoadLeveler in "Customizing the Administration File".
The administration file is called LoadL_admin and it lists and defines the machine, user, class, group, and adapter stanzas.
Stanzas have the following general format:
Figure 23. Format of Administration File Stanzas
label: type = type_of_stanza keyword1 = value1 keyword2 = value2 ... |
The following is a simple example of an administration file illustrating several stanzas:
Figure 24. Sample Administration File Stanzas
machine_a: type = machine
central_manager = true # defines this machine as the central manager
adapter_stanzas = adapter_a # identifies an adapter stanza
class_a: type = class
priority = 50 # priority of this class
user_a: type = user
priority = 50 # priority of this user
group_a: type = group
priority = 50 # priority of this group
adapter_a: type = adapter
adapter_name = en0 #defines an adapter
|
The characteristics of a stanza are:
You can add as many stanzas as you would like to the administration file. This section tells you how to modify this file in a step-by-step manner. You do not have to perform the steps in the order that they appear here.
The information in a machine stanza defines the characteristics of that machine. You do not have to specify a machine stanza for every machine in the LoadLeveler cluster but you must have one machine stanza for the machine that will serve as the central manager.
If you do not specify a machine stanza for a machine in the cluster, the machine and the central manager still communicate and jobs are scheduled on the machine but the machine is assigned the default values specified in the default machine stanza. If there is no default stanza, the machine is assigned default values set by LoadLeveler.
Any machine name used in the stanza must be a name which can be resolved to an IP address. This name is referred to as an interface name because the name can be used for a program to interface with the machine. Generally, interface names match the machine name, but they do not have to.
By default, LoadLeveler will append the DNS domain name to the end of any machine name without a domain name appended before resolving its address. If you specify a machine name without a domain name appended to it and you do not want LoadLeveler to append the DNS domain name to it, specify the name using a trailing period. You may have a need to specify machine names in this way if you are running a cluster with more than one nameserving technique. For example, if you are using a DNS nameserver and running NIS, you may have some machine names which are resolved by NIS which you do not want LoadLeveler to append DNS names to. In situations such as this, you also want to specify name_server keyword in your machine stanzas.
Under the following conditions, you must have a machine stanza for the machine in question:
Machine stanzas take the following format. Default values for keywords appear in bold:
Figure 25. Format of a Machine Stanza
label: type = machine adapter_stanzas = stanza_list alias = machine_name central_manager = true | false | alt cpu_speed_scale = true | false machine_mode = batch | interactive | general master_node_exclusive = true | false max_jobs_scheduled = number name_server = list pvm_root = pathname pool_list = pool_numbers schedd_host = true | false spacct_excluse_enable = true | false speed = number submit_only = true | false |
You can specify the following keywords in a machine stanza:
Note: In general, if your cluster is configured with machine hostnames which match the hostnames corresponding to the IP address configured for the LAN adapters which LoadLeveler is expected to use, you will not have to specify the alias keyword. For example, if all of the machines in your cluster are configured like this sample machine, you should not have to specify the alias keyword.
Machine porsche.kgn.ibm.com
However, if any machine in your cluster is configured like either of the following two sample machines, then you will have to specify the alias keyword for those machines:
You need to code the machine stanza as:
chevy: type = machine alias = yugo
You need to code the machine stanza as:
bmw: type = machine alias = rover
machine_a: type = machine central_manager = true
false specifies that this machine is not the central manager.
alt specifies that this machine can serve as an alternate central manager in the event that the primary central manager is not functioning. For more information on recovering if the primary central manager is not operating, refer to "What Happens if the Central Manager Isn't Operating?". Submit-only machines cannot have their machine stanzas set to this value.
If you are going to select machines to serve as alternate central managers, you should look at the following keywords in the configuration file:
For information on setting these keywords, see "Step 9: Specify Alternate Central Managers"
If DNS is specified alone, LoadLeveler will always append the DNS domain name to machine names specified in LoadLeveler commands. If NIS or LOCAL is specified, LoadLeveler will never append a DNS domain name to machine names specified in LoadLeveler commands. If DNS is specified with either NIS or LOCAL, LoadLeveler will always look up the name in the administration file to determine whether to append a DNS domain name. If the name is specified with a trailing period, it doesn't append the domain name.
The following example illustrates how the speed keyword can be used for assigning weights to machines.
If your cluster consisted of five RISC System/6000 machines that you want to have the same weight, you would not have to specify this keyword in the administration file. By default, all machines would have a weight of 1.0. If, however, you add an SP system to your cluster for parallel job processing, you may want to update the local configuration file for each node of the SP system to charge differently for resource consumption on those nodes. You would need to set the speed keyword to something other than 1.0 to make the SP nodes have a different weight.
For information on how the speed keyword can be used to schedule machines, refer to "Step 6: Prioritize the Order of Executing Machines Maintained by the Negotiator"
In this example, the machine is being defined as the central manager.
# machine_a: type = machine central_manager = true # central manager runs here
This example sets up a submit-only node. Note that the submit-only keyword is set to true:
# machine_b: type = machine central_manager = false # not the central manager schedd_host = false # not a scheduling machine submit_only = true # submit only machine alias = machineb # interface name
In the following example, machine_c is the central manager, has an alias associated with it, and can run parallel PVM jobs:
# machine_c: type = machine central_manager = true # central manager runs here schedd_host = true # defines a public scheduler alias = brianne pvm_root = /u/brianne/loadl/1.2.0/aix32/pvm3
The information specified in a user stanza defines the characteristics of that user. You can have one user stanza for each user but this is not necessary. If an individual user does not have their own user stanza, that user uses the defaults defined in the default user stanza.
User stanzas take the following format:
Figure 26. Format of a User Stanza
label: type = user account = list default_class = list default_group = group name default_interactive_class = class name maxidle = number maxjobs = number maxqueued = number max_node = number max_processors = number priority = number total_tasks = number |
You can specify the following keywords in a user stanza:
Suppose a job requests a CPU limit of 10 minutes. Also, suppose the default class list is default_class = short long, where short is a class for jobs up to five minutes in length and long is a class for jobs up to one hour in length. LoadLeveler will select the long class for this job because the short class does not have sufficient resources.
If no default_class is specified in the user stanza, or if there is no user stanza at all, then jobs submitted without a class statement are assigned to the default_class that appears in the default user stanza. If you do not define a default_class, jobs are assigned to the class called No_Class.
If you specify default_group = Unix_Group, LoadLeveler sets the user's LoadLeveler group to his or her primary UNIX group (as defined in the /etc/passwd file).
If you do not set a default_interactive_class value in the user stanza, or if there is no user stanza at all, then interactive jobs submitted without a class statement are assigned to the default_interactive_class that appears in the default user stanza. If you do not define a default_interactive_class, interactive jobs are assigned to the class called No_Class.
See "Example 2" for more information on how LoadLeveler assigns a default interactive class to jobs.
For more information, see "Controlling the Mix of Idle and Running Jobs"
For more information, see "Controlling the Mix of Idle and Running Jobs"
For more information, see "Controlling the Mix of Idle and Running Jobs"
In this example, user fred is being provided with a user stanza. His jobs will have a user priority of 100. If he does not specify a job class in his job command file, the default job class class_a will be used. In addition, he can have a maximum of 15 jobs running at the same time.
# Define user stanzas fred: type = user priority = 100 default_class = class_a maxjobs = 15
This example explains how a default interactive class for a parallel job is set by presenting a series of user stanzas and class stanzas. This example assumes that users do not specify the LOADL_INTERACTIVE_CLASS environment variable.
default: type =user
default_interactive_class = red
default_class = blue
carol: type = user
default_class = single double
default_interactive_class = ijobs
steve: type = user
default_class = single double
ijobs: type = class
wall_clock_limit = 08:00:00
red: type = class
wall_clock_limit = 30:00
If the user Carol submits an interactive job, the job is assigned to the default interactive class called ijobs. The job is assigned a wall clock limit of 8 hours. If the user Steve submits an interactive job, the job is assigned to the red class from the default user stanza. The job is assigned a wall clock limit of 30 minues.
In this example, Jane's jobs have a user priority of 50, and if she does not specify a job class in her job command file the default job class small_jobs is used. This user stanza does not specify the maximum number of jobs that Jane can run at the same time so this value defaults to the value defined in the default stanza. Also, suppose Jane is a member of the primary UNIX group "staff." Jobs submitted by Jane will use the default LoadLeveler group "staff." Lastly, Jane can use three different account numbers.
# Define user stanzas jane: type = user priority = 50 default_class = small_jobs default_group = Unix_Group account = dept10 user3 user4
The information in a class stanza defines characteristics for that class. Class stanzas are optional. Class stanzas take the following format. Default values for keywords appear in bold.
Figure 27. Format of a Class Stanza
label: type = class admin= list class_comment = "string" exclude_groups = list exclude_users = list include_groups = list include_users = list master_node_requirement = true | false maxjobs = number max_node = number max_processors = number nice = value NQS_class = true | false NQS_submit = name NQS_query = queue names priority = number total_tasks = number core_limit = hardlimit,softlimit cpu_limit = hardlimit,softlimit data_limit = hardlimit,softlimit file_limit = hardlimit,softlimit job_cpu_limit = hardlimit,softlimit rss_limit = hardlimit,softlimit stack_limit = hardlimit,softlimit wall_clock_limit = hardlimit,softlimit |
You can specify the following keywords in a class stanza:
This value ranges from -20 to 20. Values out of this range are placed at the top (or bottom) of the range. For example, if your current nice value is 15, and you specify nice = 10, the resulting value is 20 (the upper limit) rather than 25. The default is 0.
For more information, consult the appropriate UNIX documentaion.
For more information on routing jobs to machines running NQS, refer to Figure 31
The class stanza includes the following limit
keywords, which allow you to control the amount of resources used by a job
step or a job process.
Table 6. Types of Limit Keywords
| Limit | How It Is Enforced |
|---|---|
| core_limit | Per process |
| cpu_limit | Per process |
| data_limit | Per process |
| file_limit | Per process |
| job_cpu_limit | Per job step |
| rss_limit | Per process |
| stack_limit | Per process |
| wall_clock_limit | Per job step |
Individual keywords are described in "Specifying Limits in the Class Stanza". The following section gives you a general overview of limits.
A limit is the amount of a resource that a job step or a process is allowed to use. (A process is a dispatchable unit of work.) A job step may be made up of several processes.
Limits include both a hard limit and a soft limit. When a hard limit is exceeded, the job is usually terminated. When a soft limit is exceeded, the job is usually given a chance to perform some recovery actions. For more information, see "Exceeding Limits".
Limits are enforced either per process or per job step, depending on the type of limit. For parallel jobs steps, which consist of multiple tasks running on multiple machines, limits are enforced on a per task basis.
For example, a common limit is the cpu_limit, which limits the amount of CPU time a single process can use. If you set cpu_limit to five hours and you have a job step that forks five processes, each process can use up to five hours of CPU time, for a total of 25 CPU hours. Another limit that controls the amount of CPU used is job_cpu_limit. This is the total amount of CPU that the entire serial job step can use. If you impose a job_cpu_limit of five hours, the entire job step (made up of all five processes) cannot consume more than five CPU hours.
You can specify limits in either the class stanza of the administration file or in the job command file. For a per process limit, the limit you set in the administration file overrides the system limit (also called the machine limit).
Process limits are enforced by the operating system. Job step limits are enforced by LoadLeveler.
When a hard limit is exceeded LoadLeveler sends a
non-trappable signal to the process (except in the case of a
parallel job). When a soft limit is exceeded, LoadLeveler sends a
trappable signal to the process. The following chart
summarizes the actions that occur when a job step limit is exceeded:
Table 7. Exceeding Job Step Limits
| Type of Job | When a Soft Limit is Exceeded | When a Hard Limit is Exceeded |
|---|---|---|
| Serial | SIGXCPU or SIGKILL issued | SIGKILL issued |
| Parallel (non-PVM) | SIGXCPU issued to both the user program and to the parallel daemon | SIGTERM issued |
| PVM | SIGXCPU issued to the user prgram | pvm_halt invoked to shut down PVM |
On systems that do not support SIGXCPU, LoadLeveler does not distinguish between hard and soft limits. When a soft limit is reached on these platforms, LoadLeveler issues a SIGKILL.
For per process limits, what happens when your job reaches and exceeds either the soft limit or the hard limit depends on the operating system you are using.
Note that when a job forks a process which exceeds a per process limit, such as the CPU limit, the operating system (and not LoadLeveler) terminates the process by issuing a SIGXCPU. As a result, you will not see an entry in the LoadLeveler logs indicating that the process exceeded the limit. The job will complete with a 0 return code. LoadLeveler can only report the status of any processes it has started.
If you need more specific information, refer to your operating system documentation.
The syntax for setting a limit is
limit_type = hardlimit,softlimit
For example:
core_limit = 120kb,100kb
To specify only a hard limit, you can enter, for example:
core_limit = 120kb
To specify only a soft limit, you can enter, for example:
core_limit = ,100kb
In a keyword statement, you cannot have any blanks between the numerical value (100 in the above example) and the units (kb). Also, you cannot have any blanks to the left or right of the comma when you define a limit in a job command file.
For limit keywords that refer to a data limit -- such as data_limit, core_limit, file_limit, stack_limit, and rss_limit -- the hard limit and the soft limit are expressed as:
integer[.fraction][units]
where integer and fraction represent numerical strings of up to eight characters. units can be:
If no units are specified, bytes are assumed.
For limit keywords that refer to a time limit -- such as cpu_limit, job_cpu_limit, and wall_clock_limit -- the hard limit and the soft limit are expressed as:
[[hours:]minutes:]seconds[.fraction]
Fractions are rounded to seconds.
You can use the following character strings with all limit keywords:
See Table 8 for more information on specifying limits.
| If the hard limit: | Then the: |
|---|---|
| Is set in both the class stanza and the job command file | Smaller of the two limits is taken into consideration. If the smaller limit is the job limit, the job limit is then compared with the user limit set on the machine that runs the job. The smaller of these two values is used. If the limit used is the class limit, the class limit is used without being compared to the machine limit. |
| Is not set in either the class stanza or the job command file | User per process limit set on the machine that runs the job is used. |
| Is set in the job command file and is less than its respective job soft limit | The job is not submitted. |
| Is set in the class stanza and is less than its respective class stanza soft limit | Soft limit is adjusted downward to equal the hard limit. |
| Is specified in the job command file | Hard limit must be greater than or equal to the specified soft limit and
less than or equal to the limit set by the administrator in the class stanza
of the administration file.
Note: If the per process limit is not defined in the administration file and the hard limit defined by the user in the job command file is greater than the limit on the executing machine, then the hard limit is set to the machine limit. |
You can specify the following limit keywords:
Examples:
core_limit = unlimited core_limit = 30mb
For more information, see "Overview of Limits"
cpu_limit = 12:56:21 # hardlimit = 12 hours 56 minutes 21 seconds cpu_limit = 56:00,50:00 # hardlimit = 56 minutes 0 seconds # softlimit = 50 minutes 0 seconds cpu_limit = 1:03 # hardlimit = 1 minute 3 seconds cpu_limit = unlimited # hardlimit = 2,147,483,647 seconds # (X'7FFFFFFF') cpu_limit = rlim_infinity # hardlimit = 2,147,483,647 seconds # (X'7FFFFFFF') cpu_limit = copy # current CPU hardlimit value on the # submitting machine.
For more information, see "Overview of Limits"
Examples:
data_limit = 125621 # hardlimit = 125621 bytes data_limit = 5621kb # hardlimit = 5621 kilobytes data_limit = 2mb # hardlimit = 2 megabytes data_limit = 2.5mw # hardlimit = 2.5 megawords data_limit = unlimited # hardlimit = 2,147,483,647 bytes # (X'7FFFFFF') data_limit = rlim_infinity # hardlimit = 2,147,483,647 bytes # (X'7FFFFFF') data_limit = copy # copy data hardlimit value from submitting # machine.
For more information, see "Overview of Limits".
For example:
job_cpu_limit = 10000
For more information on this keyword, see the JOB_LIMIT_POLICY keyword in Chapter 7. "Gathering Job Accounting Data". For more general information on limits, see "Overview of Limits".
If you are running the Backfill scheduler, you must set a wall clock limit either in the job command file or in a class stanza (for the class associated with the job you submit). LoadLeveler administrators should consider setting a default wall clock limit in a default class stanza. For more information on setting a wall clock limit when using the Backfill scheduler, see "Choosing a Scheduler".
For more general information on limits, see "Overview of Limits".
class_a: type=class # class that excludes users priority=10 # ClassSysprio exclude_users=green judy # Excluded users
small: type=class # class for small jobs priority=80 # ClassSysprio (max=100) cpu_limit=00:02:00 # 2 minute limit data_limit=30mb # max 30 MB data segment core_limit=10mb # max 10 MB core file file_limit=50mb # max file size 50 MB stack_limit=10mb # max stack size 10 MB rss_limit=35mb # max resident set size 35 MB include_users = bob sally # authorized users
medium: type=class # class for medium jobs
priority=70 # ClassSysprio
cpu_limit=00:10:00 # 10 minute run time limit
data_limit=80mb,60mb # max 80 MB data segment
# min 60 MB data segment
core_limit=30mb # max 30 MB core file
file_limit=80mb # max file size 80 MB
stack_limit=30mb # max stack size 30 MB
rss_limit=100mb # max resident set size 100 MB
job_cpu_limit=1800,1200 # hard limit is 30 minutes,
# soft limit is 20 minutes
large: type=class # class for large jobs
priority=60 # ClassSysprio
cpu_limit=00:10:00 # 10 minute run time limit
data_limit=120mb # max 120 MB data segment
core_limit=30mb # max 30 MB core file
file_limit=120mb # max file size 120 MB
stack_limit=unlimited # unlimited stack size
rss_limit=150mb # max resident set size 150 MB
job_cpu_limit = 3600,2700 # hard limit 60 minutes
# soft limit 45 minutes
wall_clock_limit=12:00:00,11:59:55 # hard limit is 12 hours
nqs: type=class # class for NQS jobs NQS_class=true NQS_submit=pipe_queue # NQS pipe queue name NQS_query=one two three # list of queue names
You can use the class names in control expressions in both the global and local configuration file.
PVM3: type=class # class for PVM jobs priority=60 # ClassSysprio (max=100) max_processors=15 # maximum number of processors
sp-6hr-sp: type=class # class for master node machines priority=50 # ClassSysprio (max=100) cpu_limit = 06:00:00 # 6 hour limit job_cpu_limit = 06:00:00 # hard limit is 6 hours core_limit = lmb # max 1MB core file master_node_requirement = true # master node definition
LoadLeveler groups are another way of granting control to the system administrator. Although a LoadLeveler group is independent from a UNIX group, you can configure a LoadLeveler group to have the same users as a UNIX group by using the include_users keyword, which is explained in this section.
The information specified in a group stanza defines the characteristics of that group. Group stanzas are optional and take the following format:
Figure 28. Format of a Group Stanza
label: type = group admin = list exclude_users = list include_users = list maxidle = number maxjobs = number maxqueued = number max_node = number max_processors = number priority = number total_tasks = number |
You can specify the following keywords in a group stanza:
For more information, see "Controlling the Mix of Idle and Running Jobs".
For more information, see "Controlling the Mix of Idle and Running Jobs".
For more information, see "Controlling the Mix of Idle and Running Jobs".
In this example, the group name is department_a. The jobs issued by users belonging to this group will have a priority of 80. There are three members in this group.
# Define group stanzas department_a: type = group priority = 80 include_users = susann holly fran
In this example, the group called great_lakes has five members and these user's jobs have a priority of 100:
# Define group stanzas great_lakes: type = group priority = 100 include_users = huron ontario michigan erie superior
An adapter stanza identifies network adapters that are available on the machines in the LoadLeveler cluster. Adapter stanzas are optional. You need to specify an adapter stanza when you want LoadLeveler jobs to be able to request a specific adapter. You do not need to specify an adapter stanza when you want LoadLeveler jobs to access a shared, default adapter via TCP/IP.
Note the following when using an adapter stanza:
For information on creating adapter stanzas for an SP system, see llextSDR - Extract adapter information from the SDR.
An adapter stanza has the following format:
Figure 29. Format of an Adapter Stanza
label: type = adapter adapter_name = name interface_address = IP_address interface_name = name network_type = type switch_node_number = integer |
You can specify the following keywords in an adapter stanza:
In the following example, the adapter stanza called "sp01sw.ibm.com" specifies an SP switch adapter. Note that sp01sw.ibm.com is also specified on the adapter_stanzas keyword of the machine stanza for the "yugo" machine.
yugo: type=machine
adapter_stanzas = sp01sw.ibm.com
...
sp01sw.ibm.com: type = adapter
adapter_name = css0
interface_address = 12.148.44.218
interface_name = sp01sw.ibm.com
network_type = switch
switch_node_number = 7
One of your main tasks as system administrator is to configure LoadLeveler. To configure LoadLeveler, you need to know what the configuration information is and where it is located. Configuration information includes the following:
LoadLeveler sets up the following default values for the configuration information:
You can run your installation with these default values, or you can change any or all of them. To override the defaults, you must update the following keywords in the /etc/LoadL.cfg file:
Note that if you change the LoadLeveler user ID to something other than loadl, you will have to make sure your configuration files are owned by this ID.
You can also override the /etc/LoadL.cfg file. For an example of when you might want to do this, see "Querying Multiple LoadLeveler Clusters".
By taking a look at the configuration files that come with LoadLeveler, you will find that there are many parameters that you can set. In most cases, you will only have to modify a few of these parameters. In some cases, though, depending upon the LoadLeveler nodes, network connection, and hardware availability, you may need to modify additional parameters. This chapter describes these configuration files and the parameters you can set.
Configuring LoadLeveler involves modifying the configuration files that specify the terms under which LoadLeveler can use machines. There are two types of configuration files:
The information in both the LoadL_config and the LoadL_config.local files is in the form of a statement. These statements are made up of keywords and values. There are three types of configuration file keywords:
Configuration file statements take one of the following formats:
keyword=value keyword:value
Statements in the form keyword=value are used primarily to customize an environment. Statements in the form keyword:value are used by LoadLeveler to characterize the machine and are known as part of the machine description. Every machine in LoadLeveler has its own machine description which is read by the central manager when LoadLeveler is started.
To continue configuration file statements, use the back-slash character (\).
In the configuration file, comments must be on a separate line from keyword statements.
You can use the following types of constants and operators in the configuration file.
Constants may be represented as:
You can use the following C operators. The operators are listed in order of precedence. All of these operators are evaluated from left to right:
This section presents a step-by-step approach to configuring LoadLeveler. You do not have to perform the steps in the order that they appear here. Other keywords which are not specifically mentioned in any of these steps are discussed in "Step 14: Specify Additional Configuration File Keywords"
Specify the following keyword:
LoadLeveler administrators also receive mail describing problems that are encountered by the master daemon.
An administrator on a machine is granted administrative privileges on that machine. It does not grant him administrative privileges on other machines. To be an administrator on all machines in the LoadLeveler cluster either specify your user ID in the global configuration file with no entries in the local configuration file or specify your userid in every local configuration file that exists in the LoadLeveler cluster.
For example, to grant administrative authority to users bob and mary, enter the following in the configuration file:
LOADL_ADMIN = bob mary
You can use the following keywords to define the characteristics of the LoadLeveler cluster:
When set to true, every communication between LoadLeveler processes will verify that the sending process is running on a machine which is identified via a machine stanza in the administration file. The validation is done by capturing the address of the sending machine when the accept function call is issued to accept a connection. The gethostbyaddr function is called to translate the address to a name, and the name is matched with the list derived from the administration file.
This section discusses the types of schedulers that are available under LoadLeveler, and the keywords you use to define these schedulers.
See "Keyword Considerations for Parallel Jobs" for information on which keywords associated with parallel jobs are supported by the default scheduler.
The Backfill scheduler supports:
The above functions are not supported by the default LoadLeveler scheduler.
Note the following when using the Backfill scheduler:
See "Keyword Considerations for Parallel Jobs" for information on which keywords associated with parallel jobs are supported by the Backfill scheduler.
Use the following keywords to define your scheduler:
You can use the following keywords to define the characteristics of machines in the LoadLeveler cluster:
For example, to define a machine as a RISC System/6000, the keyword would look like:
ARCH = RS6000
You can specify a default_class in the default user stanza of the administration file to set a default class. If you don't, jobs will be assigned the class called No_Class.
In order for a LoadLeveler job to run on a machine, the machine must have a vacancy for the class of that job. If the machine is configured for only one No_Class job and a LoadLeveler job is already running there, then no further LoadLeveler jobs are started on that machine until the current job completes.
You can have a maximum of 1024 characters in the class statement. You cannot use allclasses as a class name, since this is a reserved LoadLeveler keyword.
You can assign multiple classes to the same machine by specifying the classes in the LoadLeveler configuration file (called LoadL_config) or in the local configuration file (called LoadL_config.local). The classes, themselves, should be defined in the administration file. See "Setting Up a Single Machine To Have Multiple Job Classes" and "Step 3: Specify Class Stanzas" for more information on classes.
This example defines the default class:
Class = { "No_Class" }
This is the default. The machine will only run one LoadLeveler job at a time that has either defaulted to, or explicitly requested class No_Class. A LoadLeveler job with class CPU_bound, for example, would not be eligible to run here. Only one LoadLeveler job at a time will run on the machine.
This example specifies multiple classes. The machine will only run jobs that have either defaulted to or explicitly requested class No_Class. A maximum of two LoadLeveler jobs are permitted to run simultaneously on the machine if the MAX_STARTERS keyword is not specified. See "Step 4: Specify How Many Jobs a Machine Can Run" for more information on MAX_STARTERS.
Class = { "No_Class" "No_Class" }
This example specifies multiple classes. The machine will only run a maximum of four LoadLeveler jobs that have either defaulted to, or explicitly requested No_Class, Small, Medium, or Large class. A LoadLeveler job with class IO_bound, for example, would not be eligible to run here.
Class = { "No_Class" "Small" "Medium" "Large" }
This example specifies multiple classes. The machine will run only LoadLeveler jobs that have explicitly requested class B or D. Up to three LoadLeveler jobs may run simultaneously: two of class B and one of class D. A LoadLeveler job with class No_Class, for example, would not be eligible to run here.
Class = { "B" "B" "D" }
You can specify unique characteristics for any machine using this keyword. When evaluating job submissions, LoadLeveler compares any required features specified in the job command file to those specified using this keyword. You can have a maximum of 1024 characters in the feature statement.
For example, if a machine has licenses for installed products ABC and XYZ, in the local configuration file you can enter the following:
Feature = {"abc" "xyz"}
When submitting a job that requires both of these products, you should enter the following in your job command file:
requirements = (Feature == "abc") && (Feature == "xyz")
In most cases, you will probably want to set this keyword to true. An example of why this keyword would be set to false is if you want to run the daemons on most of the machines in the cluster but some individual users with their own local configuration files do not want their machines to run the daemons. The individual users would modify their local configuration files and set this keyword to false. Because the global configuration file has the keyword set to true, their individual machines would still be able to participate in the LoadLeveler cluster.
Also, to define the machine as strictly a submit-only machine, set this keyword to false. For more information, see the submit-only section.
To define the machine as an executing machine only, set this keyword to false. For more information, see the submit-only section.
To specify how many jobs a machine can run, you need to take into consideration both the MAX_STARTERS keyword, which is described in this section, and the Class statement, which is mentioned here and described in more detail in "Step 3: Define LoadLeveler Machine Characteristics"
The syntax for MAX_STARTERS is:
For example, if the configuration file contains these statements:
Class = { "A" "B" "B" "C"}
MAX_STARTERS = 2
the machine can run a maximum of two LoadLeveler jobs simultaneously. The possible combinations of LoadLeveler jobs are:
If this keyword is specified in conjunction with a Class statement, the maximum number of jobs that can be run is equal to the lower of the two numbers. For example, if:
MAX_STARTERS = 2
Class = { "class_a" }
then the maximum number of job steps that can be run is one (the Class statement above defines one class).
If you specify MAX_STARTERS keyword without specifying a Class statement, by default one class still exists (called No_Class). Therefore, the maximum number of jobs that can be run when you do not specify a Class statement is one.
If this keyword is not defined in either the global configuration file or the local configuration file, the maximum number of jobs that the machine can run is equal to the number of classes in the Class statement.
Each job submitted to LoadLeveler is assigned a system priority number, based on the evaluation of the SYSPRIO keyword expression in the configuration file of the central manager. The LoadLeveler system priority number is assigned when the central manager adds the new job to the queue of jobs eligible for dispatch. Once assigned, the system priority number for a job is never changed (unless jobs for a user swap their SYSPRIO, or NEGOTIATOR_RECALCULATE_SYSPRIO_INTERVAL is not zero). Jobs assigned higher SYSPRIO numbers are considered for dispatch before jobs with lower numbers. See "How Does a Job's Priority Affect Dispatching Order?" for more information on job priorities.
You can use the following keywords to define the SYSPRIO expression:
This example creates a FIFO job queue based on submission time:
SYSPRIO : 0 - (QDate)
This example accounts for Class, User, and Group system priorities:
SYSPRIO : (ClassSysprio * 100) + (UserSysprio * 10) + (GroupSysprio * 1) - (QDate)
This example orders the queue based on the number of jobs a user is currently running. The user who has the fewest jobs running is first in the queue. You should set NEGOTIATOR_RECALCULATE_SYSPRIO_INTERVAL in conjunction with this SYSPRIO expression.
SYSPRIO : 0 - UserRunningJobs
Each executing machine is assigned a machine priority number, based on the evaluation of the MACHPRIO keyword expression in the configuration file of the central manager. The LoadLeveler machine priority number is updated every time the central manager updates its machine data. Machines assigned higher MACHPRIO numbers are considered to run jobs before machines with lower numbers. For example, a machine with a MACHPRIO of 10 is considered to run a job before a machine with a MACHPRIO of 5. Similarly, a machine with a MACHPRIO of -2 would be considered to run a job before a machine with a MACHPRIO of -3.
Note that the MACHPRIO keyword is valid only on the machine where the central manager is running. Using this keyword in a local configuration file has no effect.
When you use a MACHPRIO expression that is based on load average, the machine may be temporarily ordered later in the list immediately after a job is scheduled to that machine. This is because the negotiator adds a compensating factor to the startd machine's load average every time the negotiator assigns a job. For more information, see the NEGOTIATOR_LOADAVG_INCREMENT keyword.
You can use the following keywords in the MACHPRIO expression:
This example orders machines by the Berkeley one-minute load average.
MACHPRIO : 0 - (LoadAvg)
Therefore, if LoadAvg equals .7, this example would read:
MACHPRIO : 0 - (.7)
The MACHPRIO would evaluate to -.7.
This example orders machines by the Berkeley one-minute load average normalized for machine speed:
MACHPRIO : 0 - (1000 * (LoadAvg / (Cpus * Speed)))
Therefore, if LoadAvg equals .7, Cpus equals 1, and Speed equals 2, this example would read:
MACHPRIO : 0 - (1000 * (.7 / (1 * 2)))
This example further evaluates to:
MACHPRIO : 0 - (350)
The MACHPRIO would evaluate to -350.
Notice that if the speed of the machine were increased to 3, the equation would read:
MACHPRIO : 0 - (1000 * (.7 / (1 * 3)))
The MACHPRIO would evaluate to approximately -233. Therefore, as the speed of the machine increases, the MACHPRIO also increases.
This example orders machines accounting for real memory and available swap space (remembering that Memory is in Mbytes and VirtualMemory is in Kbytes):
MACHPRIO : 0 - (10000 * (LoadAvg / (Cpus * Speed))) + (10 * Memory) + (VirtualMemory / 1000)
This example sets a relative machine priority based on the value of the CUSTOM_METRIC keyword.
MACHPRIO : CustomMetric
To do this, you must specify a value for the CUSTOM_METRIC keyword or the CUSTOM_METRIC_COMMAND keyword in either the LoadL_config.local file of a machine or in the global LoadL_config file. To assign the same relative priority to all machines, specify the CUSTOM_METRIC keyword in the global configuration file. For example:
CUSTOM_METRIC = 5
You can override this value for an individual machine by specifying a different value in that machine's LoadL_config.local file.
This example gives master nodes the highest priority:
MACHPRIO : (MasterMachPriority * 10000)
You can control running jobs by using five control functions as Boolean expressions in the configuration file. These functions are useful primarily for serial jobs. You define the expressions, using normal C conventions, with the following functions:
The expressions are evaluated for each job running on a machine using both the job and machine attributes. Some jobs running on a machine may be suspended while others are allowed to continue.
The START expression is evaluated twice; once to see if the machine can accept jobs to run and second to see if the specific job can be run on the machine. The other expressions are evaluated after the jobs have been dispatched and in some cases, already running.
When evaluating the START expression to determine if the machine can accept jobs, Class != { "Z" } evaluates to true only if Z is not in the class definition. This means that if two different classes are defined on a machine, Class != { "Z" } (where Z is one of the defined classes) always evaluates to false when specified in the START expression and, therefore, the machine will not be considered to start jobs.
When you use a START expression that is based on the CPU load average, the negotiator may evaluate the expression as F even though the load average indicates the machine is Idle. This is because the negotiator adds a compensating factor to the startd machine's load average every time the negotiator assigns a job. For more information, see the NEGOTIATOR_LOADAVG_INCREMENT keyword.
Typically, machine load average, keyboard activity, time intervals, and job class are used within these various expressions to dynamically control job execution.
After LoadLeveler selects a job for execution, the job can be in any of several states. Figure 30 shows how the control expressions can affect the state a job is in. The rectangles represent job or daemon states, and the diamonds represent the control expressions.

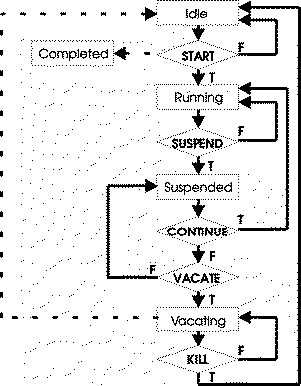

Figure 30. How Control Expressions Affect Jobs
View figure.
Criteria used to determine when a LoadLeveler job will enter Start, Suspend, Continue, Vacate, and Kill states are defined in the LoadLeveler configuration files and may be different for each machine in the cluster. They may be modified to meet local requirements.
LoadLeveler provides accounting information on completed LoadLeveler jobs. For detailed information on this function, refer to Chapter 7. "Gathering Job Accounting Data"
The following keywords allow you to control accounting functions:
For example:
ACCT = A_ON A_DETAIL
This example specifies that accounting should be turned on and that extended accounting data should be collected and that the -x flag of the llq command be enabled.
For example, the following section of the configuration file specifies that the accounting function is turned on. It also identifies the module used to perform account validation and the directory containing the global history files:
ACCT = A_ON A_VALIDATE ACCT_VALIDATION = $(BIN)/llacctval GLOBAL_HISTORY = $(SPOOL)
In one of your machine stanzas specified in the administration file, you specified that the machine would serve as the central manager. It is possible for some problem to cause this central manager to become unusable such as network communication or software or hardware failures. In such cases, the other machines in the LoadLeveler cluster believe that the central manager machine is no longer operating. To remedy this situation, you can assign one or more alternate central managers in the machine stanza to take control.
The following machine stanza example defines the machine deep_blue as an alternate central manager:
# deep_blue: type=machine central_manager = alt
If the primary central manager fails, the alternate central manager then becomes the central manager. The alternate central manager is chosen based upon the order in which its respective machine stanza appears in the administration file.
When an alternate becomes the central manager, jobs will not be lost, but it may take a few minutes for all of the machines in the cluster to check in with the new central manager. As a result, job status queries may be incorrect for a short time.
When you define alternate central managers, you should set the following keywords in the configuration file:
The default is 6.
In the following example, the alternate central manager will wait for 30 intervals, where each interval is 45 seconds:
# Set a 45 second interval CENTRAL_MANAGER_HEARTBEAT_INTERVAL = 45 # Set the number of intervals to wait CENTRAL_MANAGER_TIMEOUT = 30
For more information on central manager backup, refer to "What Happens if the Central Manager Isn't Operating?"
The configuration file provided with LoadLeveler specifies
default locations for all of the files and directories. You can modify
their locations using the following keywords. Keep in mind that the
LoadLeveler installation process installs files in these directories and these
files may be periodically cleaned up. Therefore, you should not keep
any files that do not belong to LoadLeveler in these directories.
| To specify the location of the: | Specify these keywords: |
|---|---|
| Administration File |
|
| Local Configuration File |
|
| Local Directory | The following subdirectories reside in the local directory. It is
possible that the local directory and LoadLeveler's home directory are
the same.
|
| Release Directory |
|
The LoadLeveler daemons and processes keep log files according to the specifications in the configuration file. A number of keywords are used to describe where LoadLeveler maintains the logs and how much information is recorded in each log. These keywords, shown in Table 9, are repeated in similar form to specify the pathname of the log file, its maximum length, and the debug flags to be used.
"Controlling Debugging Output" describes the events that can be reported through logging controls.
Table 9. Log Control Statements
| Daemon/ Process | Log File (required)
(See note (PAT)) | Max Length (required)
(See note (MXL)) | Debug Control (required)
(See note (FLA)) |
|---|---|---|---|
| Master | MASTER_LOG = path | MAX_MASTER_LOG = bytes | MASTER_DEBUG = flags |
| Schedd | SCHEDD_LOG = path | MAX_SCHEDD_LOG = bytes | SCHEDD_DEBUG = flags |
| Startd | STARTD_LOG = path | MAX_STARTD_LOG = bytes | STARTD_DEBUG = flags |
| Starter | STARTER_LOG = path | MAX_STARTER_LOG = bytes | STARTER_DEBUG = flags |
| Negotiator | NEGOTIATOR_LOG = path | MAX_NEGOTIATOR_LOG = bytes | NEGOTIATOR_DEBUG = flags |
| Kbdd | KBDD_LOG = path | MAX_KBDD_LOG = bytes | KBDD_DEBUG = flags |
Notes:
You can also specify that the log file be started anew with every invocation of the daemon by setting the TRUNC statement to true as follows:
You can control the level of debugging output logged by LoadLeveler programs. The following flags are presented here for your information, though they are used primarily by IBM personnel for debugging purposes:
For example,
SCHEDD_DEBUG = D_CKPT D_XDR
causes the scheduler to log information about checkpointing user jobs and exchange xdr messages with other LoadLeveler daemons. These flags will primarily be of interest to LoadLeveler implementers and debuggers.
A port number is an integer that specifies the port number to use to connect to the specified daemon. You can define these port numbers in the configuration file or the /etc/services file or you can accept the defaults. LoadLeveler first looks in the configuration file for these port numbers. If the port number is in the configuration file and is valid, this value is used. If it is an invalid value, the default value is used.
If LoadLeveler does not find the value in the configuration file, it looks in the /etc/services file. If the value is not found in this file, the default is used.
The configuration file keywords associated with port numbers are the following:
As stated earlier, if LoadLeveler does not find the value in the configuration file, it looks in the /etc/services file. If the value is not found in this file, the default is used. The following is an example of this file illustrating the port numbers:
LoadL_master 9616/tcp # Master port number for stream port LoadL_negotiator 9614/tcp # Negotiator port number LoadL_schedd 9605/tcp # Schedd port number for stream port LoadL_startd 9611/tcp # Startd port number for stream port LoadL_negotiator 9613/udp # Negotiator port number for dgram port LoadL_startd 9615/udp # Startd port number for dgram port LoadL_master 9617/udp # Master port number for dgram port
This section tells you how to set up checkpointing for jobs. For more information on the job command file keywords mentioned here, see "Job Command File Keywords". To enable checkpointing for parallel jobs, you must use the APIs provided with the Parallel Environment (PE) program. For information on parallel checkpointing, see IBM Parallel Environment for AIX:Operation and Use, Volume 1.
Checkpointing is a method of periodically saving the state of a job so that if the job does not complete it can be restarted from the saved state. You can checkpoint both serial and parallel jobs.
You can specify the following types of checkpointing:
At checkpoint time, a checkpoint file is created, by default, on the executing machine and stored on the scheduling machine. You can control where the file is created and stored by using the CHKPT_FILE and CHKPT_DIR environment variables, which are described in "Set the Appropriate Environment Variables". The checkpoint file contains the program's data segment, stack, heap, register contents, signal state and the states of the open files at the time of the checkpoint. The checkpoint file is often much larger in size than the executable.
When a job is vacated, the most recent checkpoint file taken before the job was vacated is used to restart the job when it is scheduled to run on a new machine. Note that a vacating job may be killed by LoadLeveler if the job takes too long to write its checkpoint file. This occurs only when a job is vacated by the executing machine after the job's VACATE expression evaluates to TRUE. See "Step 7: Manage a Job's Status Using Control Expressions" for more information on the VACATE and KILL expressions.
If the executing machine fails, then when the machine restarts LoadLeveler reschedules the job, which restores its state from the most recent checkpoint file. LoadLeveler waits for the original executing machine to restart before scheduling the job to run on another machine in order to ensure that only one copy of the job will run.
Review the following guidelines before you submit a checkpointing job:
This section discusses the CHKPT_STATE, CHKPT_FILE, and CHKPT_DIR environment variables.
The CHKPT_STATE environment variable allows you to enable and disable checkpointing. CHKPT_STATE can be set to the following:
If you set checkpoint=no in your job command file, no checkpoints are taken, regardless of the value of the CHKPT_STATE environment variable. See "checkpoint" for more information.
The CHKPT_FILE and CHKPT_DIR environment variables help you manage your checkpoint files. For parallel jobs, you must specify at least one of these variables in order to designate the location of the checkpoint file. For serial jobs, if you do not specify either of these variables, LoadLeveler manages your checkpoint files. LoadLeveler stores the checkpoint file in its working directories and deletes the file as soon as the job terminates (that is, when the job exits the LoadLeveler system.) If your job terminates abnormally, there is no checkpoint file from which LoadLeveler can restart the job. When you resubmit the job, it will start running from the beginning.
To avoid this problem, use CHKPT_FILE and CHKPT_DIR to control where your checkpoint file is stored. CHKPT_DIR specifies the directory where it is stored, and CHKPT_FILE specifies the checkpoint file name. (You can use just CHKPT_FILE provided you specify a full path name. Also, you can use just CHKPT_DIR; in this case the checkpoint file is copied to the directory you specify with a file name of executable.chkpt.) You can use these variables to have your checkpoint file written to a the file system of your choice. This allows you to resubmit your job and have it restart from the last checkpoint file, since the file will not be erased if your job is terminated. If your job completes normally, the checkpoint library deletes all checkpoint files associated with the job.
Note that two or more job steps running at the same time cannot both write to the same checkpoint file, since the file will be corrupted.
See "How to Checkpoint a Job" for more information.
If you plan to migrate jobs (restart jobs on a different node or set of nodes), you should understand the difference between writing checkpoint files to a local file system (such as JFS) versus a global file system (such as AFS or GPFS). The CHKPT_DIR and CHKPT_FILE environment variables allow you to write to either type of file system. If you are using a local file system, you must first move the checkpoint file(s) to the target node(s) before resubmitting the job. Then you must ensure that the job runs on those specific nodes. If you are using a global file system, the checkpointing may take longer, but there is no additional work required to migrate the job.
A checkpoint file requires a significant amount of disk space. Your job may fail if the directory where the checkpoint file is written does not have adequate space. For serial jobs, the directory must be able to contain two checkpoint files. For parallel jobs, the directory must be able to contain 2*n checkpoint files, where n is the number of tasks. You can make an accurate size estimate only after you've run your job and noticed the size of the checkpoint file that is created. LoadLeveler attempts to reserve enough disk space for the checkpoint file when the job is started. However, only you can ensure that enough space is available.
To make sure that your job is not prevented from writing a checkpoint file due to system limits, assign your job to a job class that has its file creation limit set to the maximum (unlimited). In the administration file, set up a class stanza for checkpointing jobs with the following entry:
file_limit = unlimited,unlimited
This statement specifies that there is no limit on the maximum size of a file that your program can create.
For some processes, it is impossible to obtain or recreate the state of the process. For this reason, you should only checkpoint programs whose states are simple to checkpoint and recreate. A program that is long-running, computation-intensive, and does not fork any processes is an example of a job well suited for checkpointing.
In order to prevent unpredictable results from occurring, checkpointing jobs should not use the following system services:
Another limitation of checkpointing jobs is file I/O. Since individual write calls are not traced, the file recovery scheme requires that all I/O operations, when repeated, must yield the same result. A job that opens all files as read only can be checkpointed. A job that writes to a file and then reads the data back may also be checkpointed. An example of I/O that could cause unpredictable results is reading, writing, and then reading again the same area of a file.
Compile your program with one of the following supported compilers:
All serial checkpointing programs must be linked with the LoadLeveler libraries libchkrst.a and chkrst_wrap.o. To ensure your checkpointing jobs are linked correctly, compile your programs using the compile scripts found in the bin subdirectory of the LoadLeveler release directory. These compile scripts are as follows:
In all these scripts, be sure to substitute all occurrences of "RELEASEDIR" with the location of the LoadLeveler release directory.
C Syntax
crxlc executable [args] source_file
Where:
Some examples are:
crxlc myprog myprog.c crxlc myprog -qlanglvl=extended myprog.c
CC++ Syntax
crxlC executable [args] source_file
Where:
Some examples are:
crxlC myprog myprog.C crxlC myprog -qlanglvl=extended myprog.C
FORTRAN Syntax
crxlf executable [args] source_file
Where:
Some examples are:
crxlf myprog myprog.f crxlf myprog -qintlog -qfullpath myprog.f
There are several ways to checkpoint a job. To
determine which type of checkpointing is appropriate for your situation, refer
to the following table:
| To specify that: | Do this: |
|---|---|
| Your serial job determines when the checkpoint occurs | Add the following option to your job command file:
checkpoint = user_initiated You can also select this option on the Build a Job window of the GUI. User initiated checkpointing is available to FORTRAN, C, and C++ programs which call the ckpt serial checkpointing API. See "Serial Checkpointing API" for more information. |
| LoadLeveler automatically checkpoints your serial job. | Add the following option to your job command file:
checkpoint = system_initiated You can also select this option on the Build a Job window of the GUI. For this type of checkpointing to work, system administrators must set two keywords in the configuration file to specify how often LoadLeveler would take a checkpoint of the job. These two keywords are:
You can set these keyword values globally in the global configuration file so that all machines in the cluster have the same value, or you can specify a different value for each machine by modifying the local configuration files. To enable both user initiated and system initiated checkpointing for a job, specify checkpoint=system_initiated in your job command file, and code the ckpt API call in your program. System initiated checkpointing is not available to parallel jobs. |
| LoadLeveler restarts your executable from an existing checkpoint file when you submit the job. | Pass the CHKPT_STATE environment variable using the LoadLeveler environment keyword in your job command file. For more information, see "environment". You must also set the CHKPT_DIR and/or CHKPT_FILE environment variables. |
| Your job not be checkpointed | Add the following option to your job command file:
checkpoint = no You can also select this option on the Build a Job window of the GUI. This option is the default. |
This section describes keywords that were not mentioned in the previous configuration steps. Unless your installation has special requirements for any of these keywords, you can use them with their default settings.
| Note: | For the keywords listed below which have a number as the value on the right side of the equal sign, that number must be a numerical value and cannot be an arithmetic expression. |
For more information, see "Handling an AFS Token"
You must specify this keyword in order to enable DCE authentication. To use LoadLeveler's default DCE authentication method, specify the following:
DCE_AUTHENTICATION_PAIR = $(BIN)/llgetdce, $(BIN)/llsetdce
To use your own DCE authentication method, substitute your own programs into the keyword definition. For more information, see "Handling DCE Security Credentials".
You can use this keyword to base the order in which jobs are run on the current number of running, queued, or total jobs for a user or a group. For more information, see "Step 5: Prioritize the Queue Maintained by the Negotiator"
This type of variable, which is generally created and defined by the user, can be named using any combination of letters and numbers. A user-defined variable is set equal to values, where the value defines conditions, names files, or sets numeric values. For example, you can create a variable named MY_MACHINE and set it equal to the name of your machine named iron as follows:
MY_MACHINE = iron.ore.met.com
You can then identify the keyword using a dollar sign ($) and parentheses. For example, the literal $(MY_MACHINE) following the definition in the previous example results in the automatic substitution of iron.ore.met.com in place of $(MY_MACHINE).
User-defined definitions may contain references, enclosed in parentheses, to previously defined keywords. Therefore:
A = xxx C = $(A)
is a valid expression and the resulting value of C is xxx. Note that C is actually bound to A, not to its value, so that
A = xxx C = $(A) A = yyy
is also legal and the resulting value of C is yyy.
The sample configuration file shipped with the product defines and uses some "user-defined" variables. See Appendix C. "Sample Files" for more information.
The LoadLeveler product includes variables that you can use in the configuration file. LoadLeveler variables are evaluated by the LoadLeveler daemons at various stages. They do not require you to use any special characters (such as a parenthesis or a dollar sign) to identify them.
LoadLeveler provides the following variables that you can use in your configuration file statements. For examples of using these variables, see Appendix C. "Sample Files".
variable : $(value)
You can use the following time variables in the START, SUSPEND, CONTINUE, VACATE, and KILL expressions. If you use these variables in the START expression and you are operating across multiple time zones, unexpected results may occur. This is because the negotiator daemon evaluates the START expressions and this evaluation is done in the time zone in which the negotiator resides. Your executing machine also evaluates the START expression and if your executing machine is in a different time zone, the results you may receive may be inconsistent. To prevent this inconsistency from occurring, ensure that both your negotiator daemon and your executing machine are in the same time zone.
START: (tm_mon == 9) && (tm_hour < 8) && (tm_hour > 17) && (tm_isdst = 1)
This section contains summaries keywords you can use in the administration file and those you can use in the configuration file.
The following table contains a brief description of the keywords you can
use in the administration file. For more information on a specific
keyword, see the section and page number referenced in the "For
Details" column.
| Admin. File Keyword | Stanza(s) | Brief Description | For Details |
|---|---|---|---|
| account | User, Group | A list of account numbers available to a user submitting jobs. | "Step 2: Specify User Stanzas" |
| adapter_name | Adapter | Specifies the name the operating system uses to refer to an interface card installed on a node (such as en0). | "Step 5: Specify Adapter Stanzas" |
| adapter_stanzas | Machine | A list of adapter stanza names that define the adapters on a machine which can be requested. | "Step 1: Specify Machine Stanzas" |
| admin | Group, Class | A list of administrators for a group or class. | "Step 3: Specify Class Stanzas" |
| alias | Machine | Lists one or more alias names to associate with the machine name. | "Step 1: Specify Machine Stanzas" |
| central_manager | Machine | When true, this designates the machine as the LoadLeveler central manager. | "Step 1: Specify Machine Stanzas" |
| class_comment | Class | Text characterizing the class | "Step 3: Specify Class Stanzas" |
| core_limit | Class | Specifies the hard limit and/or soft limit for the size of a core file a job can create. | "Limit Keywords" |
| cpu_limit | Class | Specifies the hard limit and/or soft limit for the CPU time a job can use. | "Limit Keywords" |
| cpu_speed_scale | Machine | Determines whether CPU time is normalized according to machine speed. | "Step 1: Specify Machine Stanzas" |
| data_limit | Class | Specifies the hard limit and/or soft limit for the size of a data segment a job can use. | "Limit Keywords" |
| default_class | User | A class name that is the default value assigned to jobs submitted by users for which no class statement appears. | "Step 2: Specify User Stanzas" |
| default_group | User | A group name to which the user belongs. | "Step 2: Specify User Stanzas" |
| default_interactive__class | User | A class to which interactive jobs are assigned for jobs submitted by users who do not specify a class using LOADL_INTERACTIVE_CLASS. | "Step 2: Specify User Stanzas" |
| exclude_groups | Class | A list of groups names identifying those who cannot submit jobs of a particular class. | "Step 3: Specify Class Stanzas" |
| exclude_users | Class, Group | A list of user names identifying those who cannot submit jobs of a particular class or who are not members of the group. | "Step 3: Specify Class Stanzas" |
| file_limit | Class | Specifies the hard limit and/or soft limit for the size of a file that a job can create. | "Limit Keywords" |
| include_groups | Class | A list of groups names identifying those who can submit jobs of a particular class. | "Step 3: Specify Class Stanzas" |
| include_users | Class, Group | A list of user names identifying those who can submit jobs of a particular class or who do belong to the group. | "Step 3: Specify Class Stanzas" |
| interface_address | Adapter | Specifies the IP address by which the adapter is known to other nodes in the network. | "Step 5: Specify Adapter Stanzas" |
| interface_name | Adapter | Specifies the name by which the adapter is known to other nodes in the network. | "Step 5: Specify Adapter Stanzas" |
| job_cpu_limit | Class | Specifies the hard limit and/or soft limit for the amount of CPU time an individual job step can use per processor. | "Limit Keywords" |
| machine_mode | Machine | Specifies the type of jobs this machine can run (batch, interactive, or both). | "Step 1: Specify Machine Stanzas" |
| master_node_exclusive | Machine | When true, this machine is used only as a master node for parallel jobs. | "Step 1: Specify Machine Stanzas" |
| master_node_requirement | Class | When true, jobs in this class have the requirement that they run on a master node having the master_node_exclusive setting. | "Step 3: Specify Class Stanzas" |
| maxidle | User, Group | Maximum number of idle jobs this user or group can have simultaneously. | "Step 2: Specify User Stanzas" |
| maxjobs | User, Class, Group | Maximum number of jobs this user, class, or group can have running simultaneously. | "Step 2: Specify User Stanzas" |
| max_jobs_scheduled | Machine | The maximum number of jobs that this machine can run. | "Step 1: Specify Machine Stanzas" |
| max_node | User, Class, Group | The maximum number of nodes a user can request for a parallel job. | "Step 2: Specify User Stanzas" |
| max_processors | User, Class, Group | The maximum number of processors a user can request for a parallel job. | "Step 2: Specify User Stanzas" |
| maxqueued | Group, User | The maximum number of jobs a single group or user can have queued at the same time. | "Step 2: Specify User Stanzas" |
| name_server | Machine | A list of nameservers used for a machine. | "Step 1: Specify Machine Stanzas" |
| network_type | Adapter | The type of network the adapter supports (for example, Ethernet). This is an administrator defined name. | "Step 5: Specify Adapter Stanzas" |
| nice | Class | Increments the nice value of a job. | "Step 3: Specify Class Stanzas" |
| NQS_class | Class | When true, any job submitted to this class is routed to an NQS machine. | "Step 3: Specify Class Stanzas" |
| NQS_query | Class | A list of queue names to use to monitor and cancel jobs. | "Step 3: Specify Class Stanzas" |
| NQS_submit | Class | A name that identifies the name of the NQS pipe queue to which the job will be routed. | "Step 3: Specify Class Stanzas" |
| pool_list | Machine | Specifies a list of pool numbers to which the machine belongs. | "Step 1: Specify Machine Stanzas" |
| priority | User, Class, Group | A number that identifies the priority of the appropriate user, class, or group. | "Step 2: Specify User Stanzas" |
| pvm_root | Machine | A directory in which PVM 3.3 is installed. | "Step 1: Specify Machine Stanzas" |
| rss_limit | Class | Specifies the hard limit and/or soft limit for the resident set size for a job. | "Limit Keywords" |
| schedd_host | Machine | When true, this machine is used to help submit-only machines access LoadLeveler hosts that run LoadLeveler jobs. | "Step 1: Specify Machine Stanzas" |
| spacct_excluse_enable | Machine | Specifies whether the SP accounting function is informed whenever this machine is being used exclusively by a particular job. | "Step 1: Specify Machine Stanzas" |
| speed | Machine | The weight associated with the machine. | "Step 1: Specify Machine Stanzas" |
| stack_limit | Class | Specifies the hard limit and/or soft limit for the size of a stack. | "Limit Keywords" |
| submit_only | Machine | When true, designates this as a submit-only machine. | "Step 1: Specify Machine Stanzas" |
| switch_node_number | Adapter | The node on which the SP switch adapter is installed. | "Step 5: Specify Adapter Stanzas" |
| total_tasks | User, Class, Group | The maximum number of tasks a user can request for a parallel job. | "Step 2: Specify User Stanzas" |
| type | All | The type of stanza. | "Administering LoadLeveler" |
| wall_clock_limit | Class | Specifies the hard limit and/or soft limit for the amount of elapsed time for which a job can run. | "Limit Keywords" |
The following tables contain a brief description of the keywords you can use in the configuration file. The term configuration file keywords refers to keywords, user-defined variables, and LoadLeveler variables. A summary table is provided for each of the three types of configuration file keywords.
The following table serves only as a reference. For more
information on a specific keyword, see the section and page number referenced
in the "For Details" column.
| Configuration File Keyword | Brief Description | For Details |
|---|---|---|
| ACCT | Turns the accounting function on (or off). | "Step 8: Define Job Accounting" |
| ACCT_VALIDATION | The module called to perform account validation. | "Step 8: Define Job Accounting" |
| ACTION_ON_MAX_REJECT | Specifies whether a job is cancelled or put in User Hold or System Hold status when the job exceeds the MAX_JOB_REJECT value. | "Step 14: Specify Additional Configuration File Keywords" |
| ADMIN_FILE | Points to the administration file containing user, class, and machine list stanzas. | "Step 10: Specify Where Files and Directories are Located" |
| AFS_GETNEWTOKEN | A filter which can be used to renew an AFS token. | "Step 14: Specify Additional Configuration File Keywords" |
| ARCH | The standard architecture of the system. | "Step 3: Define LoadLeveler Machine Characteristics" |
| BIN | The directory where LoadLeveler binaries are kept. | "Step 10: Specify Where Files and Directories are Located" |
| CENTRAL_MANAGER_HEARTBEAT_INTERVAL | The amount of time in seconds that defines how frequently primary and alternate central manager communicate with each other. | "Step 9: Specify Alternate Central Managers" |
| CENTRAL_MANAGER_TIMEOUT | The number of heartbeat intervals that an alternate central manager will wait before declaring that the primary central manager is not operating. | "Step 9: Specify Alternate Central Managers" |
| Class | The class of jobs that can run on the machine. | "Step 3: Define LoadLeveler Machine Characteristics" |
| CLIENT_TIMEOUT | The maximum time, in seconds, that a daemon waits to respond to a process over TCP/IP. | "Step 12: Define Network Characteristics" |
| COLLECTOR_DGRAM_PORT | The port number used when connecting to a daemon. | "Step 12: Define Network Characteristics" |
| CONTINUE | Continue expression. Determines if a job should continue. | "Step 7: Manage a Job's Status Using Control Expressions" |
| CUSTOM_METRIC | A machine's relative priority to run jobs. | "Step 2: Define LoadLeveler Cluster Characteristics" |
| CUSTOM_METRIC_COMMAND | An executable whose exit code is value is assigned to CUSTOM_METRIC. | "Step 2: Define LoadLeveler Cluster Characteristics" |
| DCE_AUTHENTICATION_PAIR | A pair of installation supplied programs that are used to authenticate DCE security credentials. | "Step 14: Specify Additional Configuration File Keywords" |
| EXECUTE | The local directory to store the executable checkpoints of jobs submitted by other machines. | "Step 10: Specify Where Files and Directories are Located" |
| Feature | A string specifying unique characteristics of a machine. | "Step 3: Define LoadLeveler Machine Characteristics" |
| GLOBAL_HISTORY | The directory containing the global history files. | "Step 8: Define Job Accounting" |
| HISTORY | The pathname of the history file for local LoadLeveler jobs. | "Step 10: Specify Where Files and Directories are Located" |
| JOB_ACCT_Q_POLICY | The amount of time in seconds that determines how often the startd daemon updates the schedd daemon with accounting data of running jobs. | Chapter 7. "Gathering Job Accounting Data" |
| JOB_EPILOG | Pathname of the epilog program. | "Writing Prolog and Epilog Programs" |
| JOB_LIMIT_POLICY | The amount of time in seconds that LoadLeveler checks to see if job_cpu_limit has been exceeded. | Chapter 7. "Gathering Job Accounting Data" |
| JOB_PROLOG | Pathname of the prolog program. | "Writing Prolog and Epilog Programs" |
| JOB_USER_EPILOG | Pathname of the user epilog program. | "Writing Prolog and Epilog Programs" |
| JOB_USER_PROLOG | Pathname of the user prolog program. | "Writing Prolog and Epilog Programs" |
| KBDD | KBDD expression. Location of kbdd executable (Loadl_kbdd). | "LoadLeveler Daemons" |
| KILL | Kill expression. Determines if vacated jobs should be killed. | "Step 7: Manage a Job's Status Using Control Expressions" |
| LIB | The directory where LoadLeveler libraries are kept. | "Step 10: Specify Where Files and Directories are Located" |
| LOADL_ADMIN | List of LoadLeveler administrators. | "Step 1: Define LoadLeveler Administrators" |
| LOCAL_CONFIG | Pathname of the optional local configuration file containing information specific to a node in the LoadLeveler network. | "Step 10: Specify Where Files and Directories are Located" |
| LOG | Local directory for storing log files. | "Step 10: Specify Where Files and Directories are Located" |
| MACHINE_AUTHENTICATE | Specifies whether machine validation is performed. | "Step 2: Define LoadLeveler Cluster Characteristics" |
| MACHINE_UPDATE_INTERVAL | The time, in seconds, during which machines must report to the central manager. | "Step 14: Specify Additional Configuration File Keywords" |
| MACHPRIO | Machine priority expression | "Step 6: Prioritize the Order of Executing Machines Maintained by the Negotiator" |
| Name of a local mail program used to override default mail notification. | "Using Your Own Mail Program" | |
| MASTER | Location of the master executable (LoadL_master). | "LoadLeveler Daemons" |
| MASTER_DGRAM_PORT | The port number used when connecting to the daemon. | "Step 12: Define Network Characteristics" |
| MASTER_STREAM_PORT | The port number to used when connecting to the daemon. | "Step 12: Define Network Characteristics" |
| MAX_CKPT_INTERVAL | The maximum number of seconds between checkpoints for running jobs. | "Step 13: Enable Checkpointing" |
| MAX_JOB_REJECT | The number of times a job is rejected before it is cancelled or put in User Hold or System Hold status. | "Step 14: Specify Additional Configuration File Keywords" |
| MAX_STARTERS | The maximum number of jobs that can run simultaneously. | "Step 4: Specify How Many Jobs a Machine Can Run" |
| MIN_CKPT_INTERVAL | The minimum number of seconds between checkpoints for running jobs. | "Step 13: Enable Checkpointing" |
| NEGOTIATOR | Location of the negotiator executable (LoadL_negotiator). | "LoadLeveler Daemons" |
| NEGOTIATOR_INTERVAL | The time interval, in seconds, at which the negotiator daemon updates the status of jobs in the LoadLeveler cluster and negotiates with machines that are available to run jobs. | "Step 14: Specify Additional Configuration File Keywords" |
| NEGOTIATOR_LOADAVG_INCREMENT | The factor added to the startd machine's load average to compenstate for the increased load caused by starting another machine. | "Step 14: Specify Additional Configuration File Keywords" |
| NEGOTIATOR_PARALLEL_DEFER | The length of time that a job is given to accumulate processors. | "Step 14: Specify Additional Configuration File Keywords" |
| NEGOTIATOR_PARALLEL_HOLD | The length of time a job attempts to collect machines before releasing them. | "Step 14: Specify Additional Configuration File Keywords" |
| NEGOTIATOR_RECALCULATE_SYSPRIO_INTERVAL | The amount of time in seconds between calculation of the SYSPRIO values for waiting jobs. | "Step 14: Specify Additional Configuration File Keywords" |
| NEGOTIATOR_REJECT_DEFER | The amount of time in seconds the negotiator waits before it considers scheduling a job to a machine that recently rejected the job. | "Step 14: Specify Additional Configuration File Keywords" |
| NEGOTIATOR_REMOVE_COMPLETED | The amount of time the negotiator keeps information on completed and removed jobs. | "Step 14: Specify Additional Configuration File Keywords" |
| NEGOTIATOR_RESCAN_QUEUE | The amont of time the negotiator waits to rescan the job queue for machines that temporarily have non-runnable jobs. | "Step 14: Specify Additional Configuration File Keywords" |
| NEGOTIATOR_STREAM_PORT | The port number used when connecting to the daemon. | "Step 12: Define Network Characteristics" |
| NQS_DIR | The directory where NQS commands reside. | "Step 10: Specify Where Files and Directories are Located" |
| OBITUARY_LOG_LENGTH | The number of lines from the ned of the file that are appended to the Master_Log. | "Step 14: Specify Additional Configuration File Keywords" |
| POLLING_FREQUENCY | The frequency in seconds the startd daemon uses to evaluate the load on the local machine and to decide whether to suspend, resume, or abort jobs. | "Step 14: Specify Additional Configuration File Keywords" |
| POLLS_PER_UPDATE | The frequency, in POLLING_FREQUENCY intervals, with which the startd daemon updates the central manager. | "Step 14: Specify Additional Configuration File Keywords" |
| PUBLISH_OBITUARIES | When true, specifies that the master daemon sends mail to the administrator(s) when any daemon it manages dies abnormally. | "Step 14: Specify Additional Configuration File Keywords" |
| RELEASEDIR | The directory where all the LoadLeveler software resides. | "Step 10: Specify Where Files and Directories are Located" |
| RESTARTS_PER_HOUR | The number of times the master daemon attempts to restart a daemon that dies abnormally. | "Step 14: Specify Additional Configuration File Keywords" |
| SCHEDD | Location of the schedd executable (LoadL_schedd). | "LoadLeveler Daemons" |
| SCHEDD_INTERVAL | Specifies the interval, in seconds, at which the schedd daemon checks the local job queue. | "Step 14: Specify Additional Configuration File Keywords" |
| SCHEDD_RUNS_HERE | Specifies whether this daemon will run on the host. | "Step 3: Define LoadLeveler Machine Characteristics" |
| SCHEDD_STREAM_PORT | The port number used when connecting to the daemon. | "Step 12: Define Network Characteristics" |
| SCHEDULER_API | When YES, disables the native LoadLeveler scheduling algorithm. | "Step 2: Define LoadLeveler Cluster Characteristics" |
| SCHEDULER_TYPE | Specifies the LoadLeveler Backfill scheduling algorithm. | "Step 2: Define LoadLeveler Cluster Characteristics" |
| SPOOL | The local directory where LoadLeveler keeps the local job queue and checkpoint files. | "Step 10: Specify Where Files and Directories are Located" |
| START | Start expression. Determines if a machine can run a job. | "Step 7: Manage a Job's Status Using Control Expressions" |
| STARTD | Location of the startd executable (LoadL_startd). | "LoadLeveler Daemons" |
| STARTER | Location of the starter executable (LoadL_starter). | "LoadLeveler Daemons" |
| STARTD_RUNS_HERE | Specifies whether this daemon will run on the host. | "Step 3: Define LoadLeveler Machine Characteristics" |
| START_DAEMONS | Specifies whether to start the daemons on the machine. | "Step 3: Define LoadLeveler Machine Characteristics" |
| STARTD_DGRAM_PORT | The port number used when connecting to the daemon. | "Step 12: Define Network Characteristics" |
| STARTD_STREAM_PORT | The port number used when connecting to the daemon. | "Step 12: Define Network Characteristics" |
| SUBMIT_FILTER | The program you want to run to filter a job script when the job is submitted. | "Filtering a Job Script" |
| SUSPEND | Suspend expresson. Determines if a job should be suspended. | "Step 7: Manage a Job's Status Using Control Expressions" |
| SYSPRIO | System priority expression. | "Step 5: Prioritize the Queue Maintained by the Negotiator" |
| TRUNC_KBDD_LOG_ON_OPEN | When true, specifies the log file is restarted with every invocation of the daemon. | "Step 11: Record and Control Log Files" |
| TRUNC_MASTER_LOG_ON_OPEN | When true, specifies the log file is re started with every invocation of the daemon. | "Step 11: Record and Control Log Files" |
| TRUNC_NEGOTIATOR_LOG_ON_OPEN | When true, specifies the log file is restarted with every invocation of the daemon. | "Step 11: Record and Control Log Files" |
| TRUNC_SCHEDD_LOG_ON_OPEN | When true, specifies the log file is restarted with every invocation of the daemon. | "Step 11: Record and Control Log Files" |
| TRUNC_STARTD_LOG_ON_OPEN | When true, specifies the log file is restarted with every invocation of the daemon. | "Step 11: Record and Control Log Files" |
| TRUNC_STARTER_LOG_ON_OPEN | When true, specifies the log file is restarted with every invocation of the daemon. | "Step 11: Record and Control Log Files" |
| VACATE | The vacate expression. Determines whether suspended jobs should be vacated. | "Step 7: Manage a Job's Status Using Control Expressions" |
| X_RUNS_HERE | When true, specifies you want to start the keyboard daemon (unles you are running on Sun machine or an HP machine). | "Step 3: Define LoadLeveler Machine Characteristics" |
The following table serves only as a reference. These keywords are
described in more detail in "User-Defined Variables".
| Keyword | Brief Description |
|---|---|
| BackgroundLoad | Defines the variable BackgroundLoad and assigns to it a floating point constant. This might be used as a noise factor indicating no activity. |
| CPU_Busy | Defines the variable CPU_Busy and reassigns to it at each evaluation the Boolean value True or False, depending on whether the Berkeley one-minute load average is equal to or greater than the saturation level of 1.5. |
| CPU_Idle | Defines the variable CPU_Idle and reassigns to it at each evaluation the Boolean value True or False, depending on whether the Berkeley one-minute load average is equal or less than 0.7. |
| HighLoad | Is a keyword that the user can define to use as a saturation level at which no further jobs should be started. |
| HOUR | Defines the variable HOUR and assigns to it a constant integer value. |
| JobLoad | Defines the variable JobLoad which defines the load on the machine caused by running the job. |
| KeyboardBusy | Defines the variable KeyboardBusy and reassigns to it at each evaluation the Boolean value True or False, depending on whether the keyboard and mouse have been idle for fifteen minutes. |
| LowLoad | Defines the variable LowLoad and assigns to it the value of BackgroundLoad. This might be used as a restart level at which jobs can be started again and assumes only running 1 job on the machine. |
| Specifies a local program you want to use in place of the LoadLeveler default mail notification method. | |
| MINUTE | Defines the variable MINUTE and assigns to it a constant integer value. |
| StateTimer | Defines the variable StateTimer and reassigns to it at each evaluation the number of seconds since the current state was entered. |
The following table serves only as a reference. For more information
on a specific keyword, see the section and page number referenced in the
"For Details" column.
| Keyword | Brief Description | For Details |
|---|---|---|
| Arch | Standard architecture of the system. | "LoadLeveler Variables" |
| ClassSysprio | Job priority for the class. | "Step 5: Prioritize the Queue Maintained by the Negotiator" |
| Cpus | Number of CPU's installed. | "LoadLeveler Variables" |
| CurrentTime | The UNIX date that includes the current system time, in seconds, since January 1, 1970. | "LoadLeveler Variables" |
| CustomMetric | The relative machine priority. | "LoadLeveler Variables" |
| Disk | Free disk in megabytes on the filesystem where checkpoints are stored. | "LoadLeveler Variables" |
| domain or domainname | Dynamically indicates the domain name of the current host machine where the program is running. | "LoadLeveler Variables" |
| EnteredCurrentState | Value of CurrentTime when the current state was entered. | "LoadLeveler Variables" |
| GroupQueuedJobs | The number of jobs either running or queued for the LoadLeveler group. | "Step 5: Prioritize the Queue Maintained by the Negotiator" |
| GroupRunningJobs | The number of jobs currently running for the LoadLeveler group. | "Step 5: Prioritize the Queue Maintained by the Negotiator" |
| GroupSysprio | The job priority for the group. | "Step 5: Prioritize the Queue Maintained by the Negotiator" |
| GroupTotalJobs | The total number of jobs associated with the LoadLeveler group. | "Step 5: Prioritize the Queue Maintained by the Negotiator" |
| host or hostname | Dynamically indicates the name of the host machine where the program is running. | "LoadLeveler Variables" |
| KeyboardIdle | Number of seconds since the keyboard or mouse was last used. | "LoadLeveler Variables" |
| LoadAvg | Berkeley one-minute load average. | "LoadLeveler Variables" |
| Machine | Name of the current machine. | "LoadLeveler Variables" |
| MasterMachPrio | A value that is 1 for master nodes and is 0 otherwise. | "LoadLeveler Variables" |
| Memory | Physical memory installed on the machine in megabytes. | "LoadLeveler Variables" |
| OpSys | Indicates the operating system on the host where the program is running. | "LoadLeveler Variables" |
| QDate | Difference in seconds between when the negotiator starts up and when the job is submitted. | "LoadLeveler Variables" |
| Speed | The relative machine speed. | "LoadLeveler Variables" |
| State | State of the startd. Can be None, Busy, Running, Idle, Suspend, Flush, or Drain. | "LoadLeveler Variables" |
| tilde | Dynamically defines the pathname of the LoadLeveler home directory. | "LoadLeveler Variables" |
| tm_hour | Number of hours since midnight (0-23). | "LoadLeveler Variables" |
| tm_isdst | Daylight Savings Time flag: positive when in effect, zero when not in effect, negative when information is unavailable. | "LoadLeveler Variables" |
| tm_mday | Number of the day of the month (1-31). | "LoadLeveler Variables" |
| tm_min | Number of minutes after the hour (0-59). | "LoadLeveler Variables" |
| tm_mon | Number of months since January (0-11). | "LoadLeveler Variables" |
| tm_sec | Number of seconds after the minute (0-59). | "LoadLeveler Variables" |
| tm_wday | Number of days since Sunday (0-6). | "LoadLeveler Variables" |
| tm_yday | Number of days since January 1 (0-365). | "LoadLeveler Variables" |
| tm_year | Number of years since 1900 (0-99). | "LoadLeveler Variables" |
| UserPrio | User defined priority of a job. | "Step 5: Prioritize the Queue Maintained by the Negotiator" |
| UserQueuedJobs | The number of jobs either running or queued for the user. | "Step 5: Prioritize the Queue Maintained by the Negotiator" |
| UserRunningJobs | The number of jobs currently running for the user. | "Step 5: Prioritize the Queue Maintained by the Negotiator" |
| UserSysprio | The priority of the user who submitted the job. | "Step 5: Prioritize the Queue Maintained by the Negotiator" |
| UserTotalJobs | The total number of jobs associated with the this user. | "Step 5: Prioritize the Queue Maintained by the Negotiator" |
| VirtualMemory | The size of the available swap space on the machine in kilobytes. | "LoadLeveler Variables" |
