Administrator's Guide

Recording SCSI IDs and Device Names

Use the tables that follow to record SCSI IDs and device names.

Table 25. Manual Tape Drive (4mm, 8mm, QIC, DTF, or DLT)

Device SCSI ID Device Name
Tape drive __________ /dev/mt__

Device	SCSI ID	Device Name
Tape drive	__________	/dev/mt__

Table 26. Tape Drive (3490E, 3570, or 3590)

Device SCSI ID Device Name
Tape drive __________ /dev/mt__

Device	SCSI ID	Device Name
Tape drive	__________	/dev/mt__

Table 27. Manual Optical Drives

Device SCSI ID Device Name
Optical drive __________ /dev/rop__

Device	SCSI ID	Device Name
Optical drive	__________	/dev/rop__

Table 28. BoxHill FreezerBox or Exabyte EXB-60

Device SCSI ID Device Name
Tape drive 1 (element 116) (1) __________ /dev/mt__
Tape drive 2 (element 117) (2) __________ /dev/mt__
Autochanger (element 0) __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 116) (1)	__________	/dev/mt__
Tape drive 2 (element 117) (2)	__________	/dev/mt__
Autochanger (element 0)	__________	/dev/lb__

Table 29. Andataco Encore 10e, BoxHill BreadBox, Exabyte EXB-10e, EXB-10h, EXB-10i, or TTi Series 10

Device SCSI ID Device Name
Tape drive (element 0) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive (element 0)	__________	/dev/mt__
Robot	__________	/dev/lb__

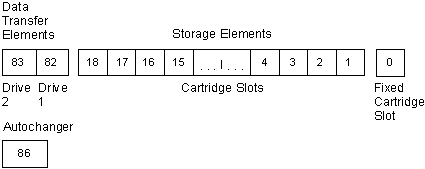

Table 30. Andataco Encore 210, BoxHill LightBox, or Exabyte EXB-210

Device SCSI ID Device Name
Tape drive 1 (element 82) __________ /dev/mt__
Tape drive 2 (element 83) __________ /dev/mt__
Robot (element 86) __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 82)	__________	/dev/mt__
Tape drive 2 (element 83)	__________	/dev/mt__
Robot (element 86)	__________	/dev/lb__

Table 31. Andataco Encore 120, BoxHill IceBox, or Exabyte EXB-120

Device SCSI ID Device Name
Tape drive 1 (element 116) (1) __________ /dev/mt__
Tape drive 2 (element 117) (2) __________ /dev/mt__
Tape drive 3 (element 118) (3) __________ /dev/mt__
Tape drive 4 (element 119) (4) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 116) (1)	__________	/dev/mt__
Tape drive 2 (element 117) (2)	__________	/dev/mt__
Tape drive 3 (element 118) (3)	__________	/dev/mt__
Tape drive 4 (element 119) (4)	__________	/dev/mt__
Robot	__________	/dev/lb__

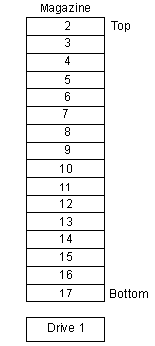

Table 32. Diverse Logistics Libra 8

Device SCSI ID Device Name
Tape drive (element 1) __________ /dev/mt__

Device	SCSI ID	Device Name
Tape drive (element 1)	__________	/dev/mt__

Table 33. Diverse Logistics Libra 16

Device SCSI ID Device Name
Tape drive (element 1) __________ /dev/mt__

Device	SCSI ID	Device Name
Tape drive (element 1)	__________	/dev/mt__

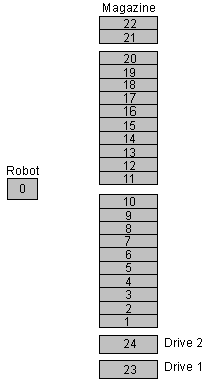

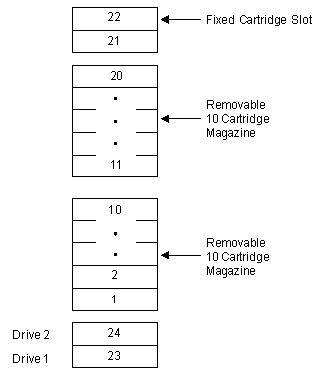

Table 34. IBM 7331-205

Device SCSI ID Device Name
Tape drive 1 (element 23) __________ /dev/mt__
Tape drive 2 (element 24) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 23)	__________	/dev/mt__
Tape drive 2 (element 24)	__________	/dev/mt__
Robot	__________	/dev/lb__

Table 35. IBM 7331-305

Device SCSI ID Device Name
Tape drive 1 (element 23) __________ /dev/mt__
Tape drive 2 (element 24) __________ /dev/mt__

Device	SCSI ID	Device Name
Tape drive 1 (element 23)	__________	/dev/mt__
Tape drive 2 (element 24)	__________	/dev/mt__

Table 36. IBM 7332-005

Device SCSI ID Device Name
Tape drive (element 1) __________ /dev/mt__

Device	SCSI ID	Device Name
Tape drive (element 1)	__________	/dev/mt__

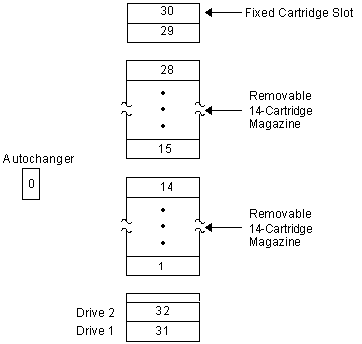

Table 37. IBM 7336-205

Device SCSI ID Device Name
Tape drive 1 (element 31) __________ /dev/mt__
Tape drive 2 (element 32) __________ /dev/mt__
Autochanger (element 0) __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 31)	__________	/dev/mt__
Tape drive 2 (element 32)	__________	/dev/mt__
Autochanger (element 0)	__________	/dev/lb__

Table 38. IBM 7337-305 and BreeceHill Q2.15 DLT

Device SCSI ID Device Name
Tape drive 1 (element 116) __________ /dev/mt__
Tape drive 2 (element 117) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 116)	__________	/dev/mt__
Tape drive 2 (element 117)	__________	/dev/mt__
Robot	__________	/dev/lb__

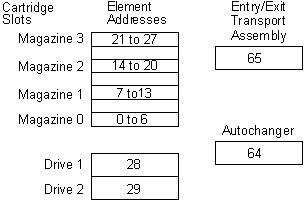

Table 39. TTi Q7, BreeceHill Q7, and MountainGate D-28 DLT

Device SCSI ID Device Name
Tape drive 1 (element 28) __________ /dev/mt__
Tape drive 2 (element 29) __________ /dev/mt__
Robot __________ /dev/lb__

Magazine slots are numbered top to bottom.

Device	SCSI ID	Device Name
Tape drive 1 (element 28)	__________	/dev/mt__
Tape drive 2 (element 29)	__________	/dev/mt__
Robot	__________	/dev/lb__

Magazine slots are numbered top to bottom.

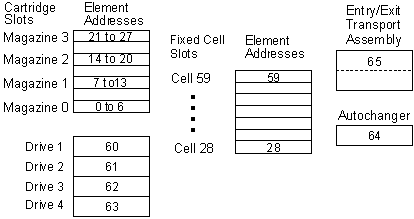

Table 40. TTi Q47, BreeceHill Q47, and MountainGate D-60 DLT

Device SCSI ID Device Name
Tape drive 1 (element 60) __________ /dev/mt__
Tape drive 2 (element 61) __________ /dev/mt__
Tape drive 3 (element 62) __________ /dev/mt__
Tape drive 4 (element 63) __________ /dev/mt__
Robot __________ /dev/lb__

Magazine slots are numbered top to bottom. Fixed cells are directly underneath the magazines. Underneath magazine 0 are fixed cells with element addresses 28 to 35, underneath magazine 1 are fixed cells with element addresses 36 to 43, and so on.

Device	SCSI ID	Device Name
Tape drive 1 (element 60)	__________	/dev/mt__
Tape drive 2 (element 61)	__________	/dev/mt__
Tape drive 3 (element 62)	__________	/dev/mt__
Tape drive 4 (element 63)	__________	/dev/mt__
Robot	__________	/dev/lb__

Magazine slots are numbered top to bottom. Fixed cells are directly underneath the magazines. Underneath magazine 0 are fixed cells with element addresses 28 to 35, underneath magazine 1 are fixed cells with element addresses 36 to 43, and so on.

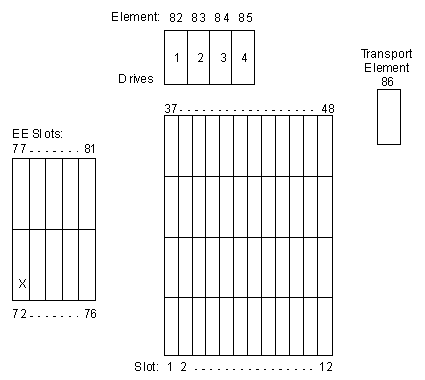

Table 41. ADIC Scalar 218, 224/M, 248, 424M, 448, and 458

Device SCSI ID Device Name
Tape drive 1 (element 82) __________ /dev/mt__
Tape drive 2 (element 83) __________ /dev/mt__
Tape drive 3 (element 84) __________ /dev/mt__
Tape drive 4 (element 85) __________ /dev/mt__
Robot __________ /dev/lb__

ADSM supports only one entry/exit port (element address 72). Only Models 224M, 248M, 424M, and 458 have mailbox slots.

Device	SCSI ID	Device Name
Tape drive 1 (element 82)	__________	/dev/mt__
Tape drive 2 (element 83)	__________	/dev/mt__
Tape drive 3 (element 84)	__________	/dev/mt__
Tape drive 4 (element 85)	__________	/dev/mt__
Robot	__________	/dev/lb__

ADSM supports only one entry/exit port (element address 72). Only Models 224M, 248M, 424M, and 458 have mailbox slots.

Table 42. ADIC VLS DLT

Device SCSI ID Device Name
Tape drive 1 (element 2) __________ /dev/mt__
Autochanger (element 0) __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 2)	__________	/dev/mt__
Autochanger (element 0)	__________	/dev/lb__

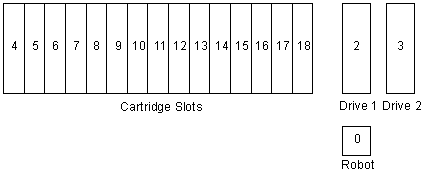

Table 43. ADIC VLS 4mm

Device SCSI ID Device Name
Tape drive 1 (element 2) __________ /dev/mt__
Tape drive 2 (element 3) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 2)	__________	/dev/mt__
Tape drive 2 (element 3)	__________	/dev/mt__
Robot	__________	/dev/lb__

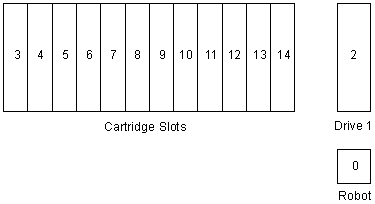

Table 44. ADIC 1200D 4mm

Device SCSI ID Device Name
Tape drive 1 (element 2) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 2)	__________	/dev/mt__
Robot	__________	/dev/lb__

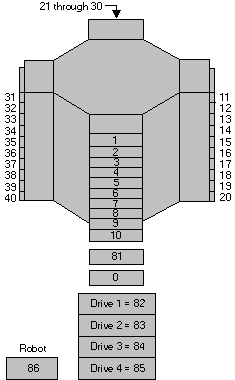

Table 45. Andataco Encore 440, BoxHill CubeBox, or Exabyte EXB-440

Device SCSI ID Device Name
Tape drive 1 (element 82) __________ /dev/mt__
Tape drive 2 (element 83) __________ /dev/mt__
Tape drive 3 (element 84) __________ /dev/mt__
Tape drive 4 (element 85) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 82)	__________	/dev/mt__
Tape drive 2 (element 83)	__________	/dev/mt__
Tape drive 3 (element 84)	__________	/dev/mt__
Tape drive 4 (element 85)	__________	/dev/mt__
Robot	__________	/dev/lb__

Table 46. Andataco Encore 480, BoxHill BorgBox, or Exabyte EXB-480

Device SCSI ID Device Name
Tape drive 1 (element 82) __________ /dev/mt__
Tape drive 2 (element 83) __________ /dev/mt__
Tape drive 3 (element 84) __________ /dev/mt__
Tape drive 4 (element 85) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 82)	__________	/dev/mt__
Tape drive 2 (element 83)	__________	/dev/mt__
Tape drive 3 (element 84)	__________	/dev/mt__
Tape drive 4 (element 85)	__________	/dev/mt__
Robot	__________	/dev/lb__

Table 47. Compaq 4/16

Device SCSI ID Device Name
Tape drive (element 1) __________ /dev/mt__

This device does not have an autochanger.

Device	SCSI ID	Device Name
Tape drive (element 1)	__________	/dev/mt__

This device does not have an autochanger.

Table 48. Hewlett-Packard C1553A, C1561A, and C1557A, or SureStore 12000e

Device SCSI ID Device Name
Tape drive (element 1) __________ /dev/mt__
Autochanger __________ /dev/lb__

The tape drive and the autochanger share a SCSI ID, but have different LUNs. Usually the drive is LUN 0 and the autochanger is LUN 1.

Device	SCSI ID	Device Name
Tape drive (element 1)	__________	/dev/mt__
Autochanger	__________	/dev/lb__

The tape drive and the autochanger share a SCSI ID, but have different LUNs. Usually the drive is LUN 0 and the autochanger is LUN 1.

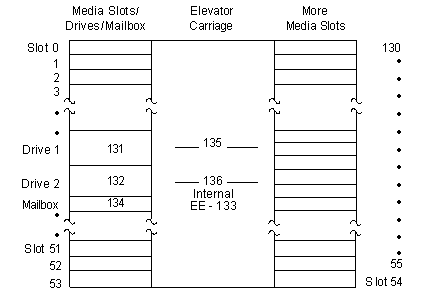

Table 49. Lago LS-380L

Device SCSI ID Device Name
Tape drive 1 (element 54) (1) __________ /dev/mt__
Tape drive 2 (element 55) (2) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 54) (1)	__________	/dev/mt__
Tape drive 2 (element 55) (2)	__________	/dev/mt__
Robot	__________	/dev/lb__

Table 50. Quantum DLT 2500, 2500XT, and DLT 4500, and DEC DLT TZ875, TZ875n, TZ885, and TZ885n

Device SCSI ID Device Name
Tape drive (element 16) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive (element 16)	__________	/dev/mt__
Robot	__________	/dev/lb__

Table 51. Quantum DLT 2700, 2700XT, 4700, or 4700XT, and DEC DLT TZ877, TZ877n, TZ887, or TZ887n

Device SCSI ID Device Name
Tape drive (element 16) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive (element 16)	__________	/dev/mt__
Robot	__________	/dev/lb__

Table 52. AIWA AL-D210

Device SCSI ID Device Name
Tape drive 1 (element 32768) __________ /dev/mt__
Robot __________ /dev/lb__

Note: Initialize the Status Switch by setting the DIP switch to the ON position.

Table 53. AIWA AL-D220

Device SCSI ID Device Name
Tape drive 0 (element 32768) __________ /dev/mt__
Tape drive 1 (element 32769) __________ /dev/mt__
Robot __________ /dev/lb__

Note: Initialize the Status Switch by setting the DIP switch to the ON position.

Table 54. Exabyte EXB-018/218

Device SCSI ID Device Name
Tape drive 1 (element 82) __________ /dev/mt__
Tape drive 2 (element 83) __________ /dev/mt__
Autochanger __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 82)	__________	/dev/mt__
Tape drive 2 (element 83)	__________	/dev/mt__
Autochanger	__________	/dev/lb__

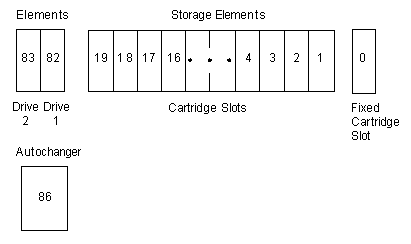

Table 55. Exabyte EXB-220

Device SCSI ID Device Name
Tape drive 1 (element 82) __________ /dev/mt__
Tape drive 2 (element 83) __________ /dev/mt__
Autochanger (element 86) __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 82)	__________	/dev/mt__
Tape drive 2 (element 83)	__________	/dev/mt__
Autochanger (element 86)	__________	/dev/lb__

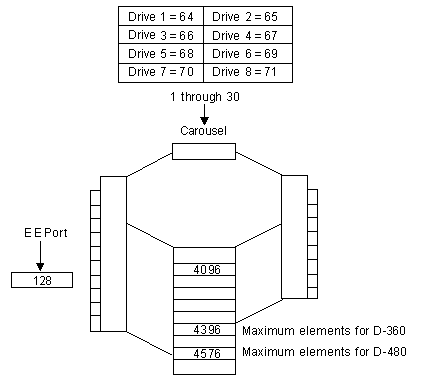

Table 56. MountainGate D-360 and D-480

Device SCSI ID Device Name
Tape drive 1 (element 64) __________ /dev/mt__
Tape drive 2 (element 65) __________ /dev/mt__
Tape drive 3 (element 66) __________ /dev/mt__
Tape drive 4 (element 67) __________ /dev/mt__
Tape drive 5 (element 68) __________ /dev/mt__
Tape drive 6 (element 69) __________ /dev/mt__
Tape drive 7 (element 70) __________ /dev/mt__
Tape drive 8 (element 71) __________ /dev/mt__

Device	SCSI ID	Device Name
Tape drive 1 (element 64)	__________	/dev/mt__
Tape drive 2 (element 65)	__________	/dev/mt__
Tape drive 3 (element 66)	__________	/dev/mt__
Tape drive 4 (element 67)	__________	/dev/mt__
Tape drive 5 (element 68)	__________	/dev/mt__
Tape drive 6 (element 69)	__________	/dev/mt__
Tape drive 7 (element 70)	__________	/dev/mt__
Tape drive 8 (element 71)	__________	/dev/mt__

Table 57. Odetics ACL 2/28

Device SCSI ID Device Name
Tape drive 1 (element 128) __________ /dev/mt__
Tape drive 2 (element 129) __________ /dev/mt__
Autochanger __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 128)	__________	/dev/mt__
Tape drive 2 (element 129)	__________	/dev/mt__
Autochanger	__________	/dev/lb__

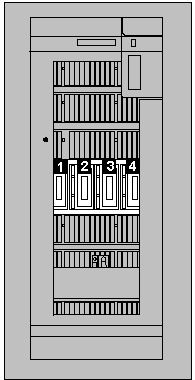

Table 58. Odetics ACL 4/52 and DEC TL810, DEC TL812, or DEC TL894

Device SCSI ID Device Name
Tape drive 1 (element 128) __________ /dev/mt__
Tape drive 2 (element 129) __________ /dev/mt__
Tape drive 3 (element 130) __________ /dev/mt__
Tape drive 4 (element 131) __________ /dev/mt__
Robot __________ /dev/lb__

Notes:

The ACL 4/52 library has a load port (Entry/Exit Transport Assembly) containing four cartridge slots. Currently ADSM considers that this library has only one slot (which is the top slot with element address 64) of the four. All ADSM Entry/Exit operations must use the top slot.
Suggestions for configuring the ACL 4/52 for the ADSM server:

Power-up State: the recommended setting is online. If set to offline, manual intervention is required to bring the library up for use by ADSM.
Automatic Drive Cleaning: set to either host initiated or fully automatic. When set to fully automatic, ADSM will ignore cleaner cartridges with proper bar code labels and will wait while drives are being cleaned.
Retry Option: use the default of retries enabled.
Auto Load: must be disabled.
Auto Inventory at Power-up: must be enabled.

For any other configurations and settings, refer to the documentation about your library.

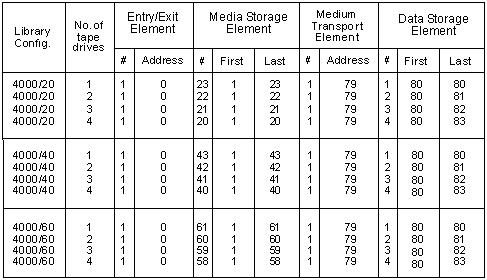

Table 59. Spectralogic 4000/20, 4000/40, or 4000/60

Device SCSI ID Device Name
Tape drive 1 (element 80) __________ /dev/mt__
Tape drive 2 (element 81) __________ /dev/mt__
Tape drive 3 (element 82) __________ /dev/mt__
Tape drive 4 (element 83) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 80)	__________	/dev/mt__
Tape drive 2 (element 81)	__________	/dev/mt__
Tape drive 3 (element 82)	__________	/dev/mt__
Tape drive 4 (element 83)	__________	/dev/mt__
Robot	__________	/dev/lb__

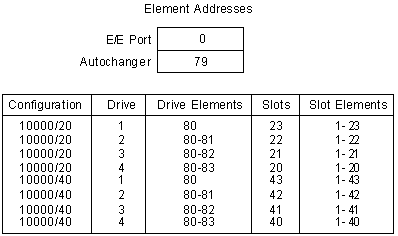

Table 60. Spectralogic 10000/20 or 10000/40

Device SCSI ID Device Name
Tape drive 1 (element 80) __________ /dev/mt__
Tape drive 2 (element 81) __________ /dev/mt__
Tape drive 3 (element 82) __________ /dev/mt__
Tape drive 4 (element 83) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 80)	__________	/dev/mt__
Tape drive 2 (element 81)	__________	/dev/mt__
Tape drive 3 (element 82)	__________	/dev/mt__
Tape drive 4 (element 83)	__________	/dev/mt__
Robot	__________	/dev/lb__

Table 61. StorageTek 9704

Device SCSI ID Device Name
Tape drive 0 (element 25) __________ /dev/mt__
Tape drive 1 (element 26) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 0 (element 25)	__________	/dev/mt__
Tape drive 1 (element 26)	__________	/dev/mt__
Robot	__________	/dev/lb__

Table 62. StorageTek 9708 or 9711

Device SCSI ID Device Name
Tape drive 0 (element 54) __________ /dev/mt__
Tape drive 1 (element 55) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 0 (element 54)	__________	/dev/mt__
Tape drive 1 (element 55)	__________	/dev/mt__
Robot	__________	/dev/lb__

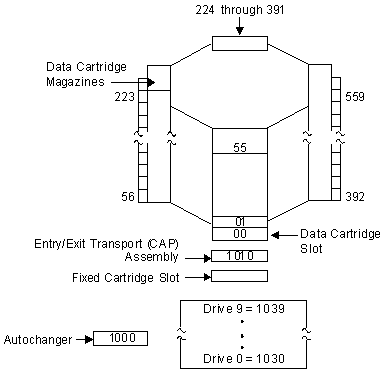

Table 63. StorageTek 9710 DLT

Device SCSI ID Device Name
Tape drive 0 (element 1030) __________ /dev/mt__
Tape drive 1 (element 1031) __________ /dev/mt__
Tape drive 2 (element 1032) __________ /dev/mt__
Tape drive 3 (element 1033) __________ /dev/mt__
Tape drive 4 (element 1034) __________ /dev/mt__
Tape drive 5 (element 1035) __________ /dev/mt__
Tape drive 6 (element 1036) __________ /dev/mt__
Tape drive 7 (element 1037) __________ /dev/mt__
Tape drive 8 (element 1038) __________ /dev/mt__
Tape drive 9 (element 1039) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 0 (element 1030)	__________	/dev/mt__
Tape drive 1 (element 1031)	__________	/dev/mt__
Tape drive 2 (element 1032)	__________	/dev/mt__
Tape drive 3 (element 1033)	__________	/dev/mt__
Tape drive 4 (element 1034)	__________	/dev/mt__
Tape drive 5 (element 1035)	__________	/dev/mt__
Tape drive 6 (element 1036)	__________	/dev/mt__
Tape drive 7 (element 1037)	__________	/dev/mt__
Tape drive 8 (element 1038)	__________	/dev/mt__
Tape drive 9 (element 1039)	__________	/dev/mt__
Robot	__________	/dev/lb__

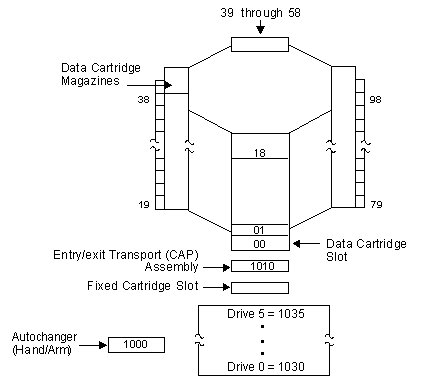

Table 64. StorageTek 9714 DLT

Device SCSI ID Device Name
Tape drive 0 (element 1030) __________ /dev/mt__
Tape drive 1 (element 1031) __________ /dev/mt__
Tape drive 2 (element 1032) __________ /dev/mt__
Tape drive 3 (element 1033) __________ /dev/mt__
Tape drive 4 (element 1034) __________ /dev/mt__
Tape drive 5 (element 1035) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 0 (element 1030)	__________	/dev/mt__
Tape drive 1 (element 1031)	__________	/dev/mt__
Tape drive 2 (element 1032)	__________	/dev/mt__
Tape drive 3 (element 1033)	__________	/dev/mt__
Tape drive 4 (element 1034)	__________	/dev/mt__
Tape drive 5 (element 1035)	__________	/dev/mt__
Robot	__________	/dev/lb__

Table 65. Odetics ACL 2640 and DEC TL820, DEC TL822, or DEC TL893

Device SCSI ID Device Name
Tape drive 1 (element 128) __________ /dev/mt__
Tape drive 2 (element 129) __________ /dev/mt__
Tape drive 3 (element 130) __________ /dev/mt__
Robot __________ /dev/lb__

Note: Suggestions for configuring the Odetics ACL 2640 for the ADSM server:

ADSM does not support the RS-232 interface to the robot, only SCSI.
ADSM does not support the PTM (passthrough) mechanism that allows attaching multiple boxes together as one big library.
ADSM supports the box in its default mode of operation. (The device has no touchpad such as the Odetics ACL 4/52 has.)

Table 66. Odetics ACL 6/176 or DEC TL826 or DEC TL896

Device SCSI ID Device Name
Tape drive 1 (element 128) __________ /dev/mt__
Tape drive 2 (element 129) __________ /dev/mt__
Tape drive 3 (element 130) __________ /dev/mt__
Tape drive 4 (element 131) __________ /dev/mt__
Tape drive 5 (element 132) __________ /dev/mt__
Tape drive 6 (element 133) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 128)	__________	/dev/mt__
Tape drive 2 (element 129)	__________	/dev/mt__
Tape drive 3 (element 130)	__________	/dev/mt__
Tape drive 4 (element 131)	__________	/dev/mt__
Tape drive 5 (element 132)	__________	/dev/mt__
Tape drive 6 (element 133)	__________	/dev/mt__
Robot	__________	/dev/lb__

Table 67. Odetics ACL 9/88

Device SCSI ID Device Name
Tape drive 1 (element 128) __________ /dev/mt__
Tape drive 2 (element 129) __________ /dev/mt__
Tape drive 3 (element 130) __________ /dev/mt__
Tape drive 4 (element 131) __________ /dev/mt__
Tape drive 5 (element 132) __________ /dev/mt__
Tape drive 6 (element 133) __________ /dev/mt__
Tape drive 7 (element 134) __________ /dev/mt__
Tape drive 8 (element 135) __________ /dev/mt__
Tape drive 9 (element 136) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 128)	__________	/dev/mt__
Tape drive 2 (element 129)	__________	/dev/mt__
Tape drive 3 (element 130)	__________	/dev/mt__
Tape drive 4 (element 131)	__________	/dev/mt__
Tape drive 5 (element 132)	__________	/dev/mt__
Tape drive 6 (element 133)	__________	/dev/mt__
Tape drive 7 (element 134)	__________	/dev/mt__
Tape drive 8 (element 135)	__________	/dev/mt__
Tape drive 9 (element 136)	__________	/dev/mt__
Robot	__________	/dev/lb__

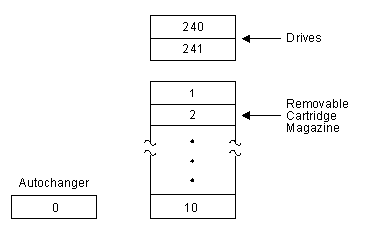

Table 68. OverlandData LXB 2110, 2210, 4110, and 4210

Device SCSI ID Device Name
Tape drive 1 (element 240) __________ /dev/mt__
Tape drive 2 (element 241) __________ /dev/mt__
Robot __________ /dev/lb__

Element 241 applies to dual-drive models.

Device	SCSI ID	Device Name
Tape drive 1 (element 240)	__________	/dev/mt__
Tape drive 2 (element 241)	__________	/dev/mt__
Robot	__________	/dev/lb__

Element 241 applies to dual-drive models.

Table 69. Qualstar TLS 2xxx 4mm

Device SCSI ID Device Name
Tape drive 1 (element 500) __________ /dev/mt__
Tape drive 2 (element 501) __________ /dev/mt__
Tape drive 3 (element 502) __________ /dev/mt__
Tape drive 4 (element 503) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 500)	__________	/dev/mt__
Tape drive 2 (element 501)	__________	/dev/mt__
Tape drive 3 (element 502)	__________	/dev/mt__
Tape drive 4 (element 503)	__________	/dev/mt__
Robot	__________	/dev/lb__

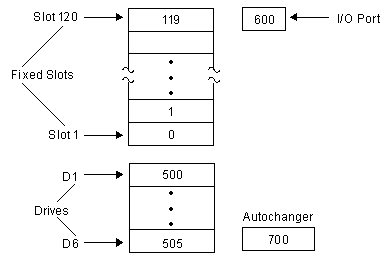

Table 70. Qualstar TLS 4xxx 8mm

Device SCSI ID Device Name
Tape drive 1 (element 500) __________ /dev/mt__
Tape drive 2 (element 501) __________ /dev/mt__
Tape drive 3 (element 502) __________ /dev/mt__
Tape drive 4 (element 503) __________ /dev/mt__
Tape drive 5 (element 504) __________ /dev/mt__
Tape drive 6 (element 505) __________ /dev/mt__
Robot __________ /dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 500)	__________	/dev/mt__
Tape drive 2 (element 501)	__________	/dev/mt__
Tape drive 3 (element 502)	__________	/dev/mt__
Tape drive 4 (element 503)	__________	/dev/mt__
Tape drive 5 (element 504)	__________	/dev/mt__
Tape drive 6 (element 505)	__________	/dev/mt__
Robot	__________	/dev/lb__

Table 71. ATG Cygnet

Device SCSI ID Device Name
Tape drive 1 (element 131) __________ /dev/mt__
Tape drive 2 (element 132) __________ /dev/mt__
Robot __________ /dev/lb__

The number of storage slots and drives varies depending on the configuration of the library.

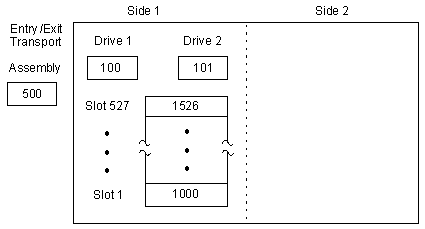

Table 72. DISC DocuStore

Device SCSI ID Device Name
Tape drive 1 (element 100) __________ /dev/mt__
Tape drive 2 (element 101) __________ /dev/mt__
Robot __________ /dev/lb__

With the current ADSM device drivers, cartridges cannot be transferred or exchanged between the two independent changers in a dual library system. Only one side can be accessed at a time. (This diagram is for reference only. Refer to the product documentation for your library because your element addresses and drive configurations may differ.)

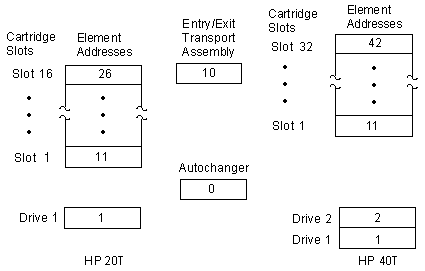

Table 73. Hewlett-Packard 20T and 40T

Device SCSI ID Device Name
Tape drive 1 (element 1) __________ /dev/mt__
Tape drive 2 (element 2) __________ /dev/mt__
Robot __________ /dev/lb__

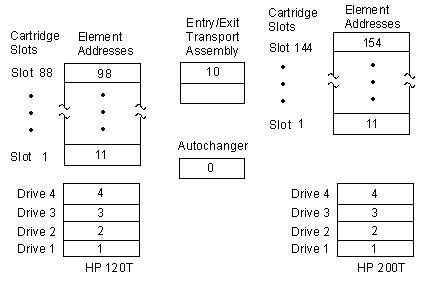

Table 74. Hewlett-Packard 120T and 200T

Device SCSI ID Device Name
Tape drive 1 (element 1) __________ /dev/mt__
Tape drive 2 (element 2) __________ /dev/mt__
Tape drive 3 (element 3) __________ /dev/mt__
Tape drive 4 (element 4) __________ /dev/mt__
Robot __________ /dev/lb__

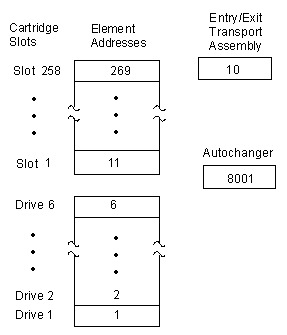

Table 75. IBM 3995

Device SCSI ID Device Name
Tape drive 1 (element 1) __________ /dev/mt__
Tape drive 2 (element 2) __________ /dev/mt__
Tape drive 3 (element 3) __________ /dev/mt__
Tape drive 4 (element 4) __________ /dev/mt__
Tape drive 5 (element 5) __________ /dev/mt__
Tape drive 6 (element 6) __________ /dev/mt__
Robot __________ /dev/lb__

Table 76. Kodak System 2000 ADL

Device SCSI ID Device Name
Tape drive 1 (element 5) __________ /dev/mt__
Tape drive 2 (element 6) __________ /dev/mt__
Robot __________ /dev/lb__

The number of storage slots and drives varies depending on the configuration of the library. The Kodak System 2000 ADL accepts 10.2GB and 14.8GB media. The formats are DRIVE, 10200MB, and 14800MB. If the Kodak System 2000 ADL contains mixed media, the 10200MB and 14800MB media have the same effect as the DRIVE media. The new keywords are described in the product documentation for the Kodak System 2000 ADL.

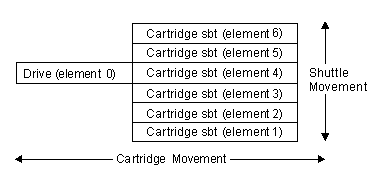

Table 77. Philips LMS RapidChanger

Device SCSI ID Device Name
Tape drive (element 0) __________ /dev/mt__
Robot __________ /dev/lb__

Although the Philips LMS has a shuttle and a WORM drive, it has one SCSI ID and one logical unit (LUN). Therefore, configure the Philips LMS through SMIT twice (once as a library and once as an optical disk). Specify the same SCSI ID and LUN combination in the CONNECTION address field.

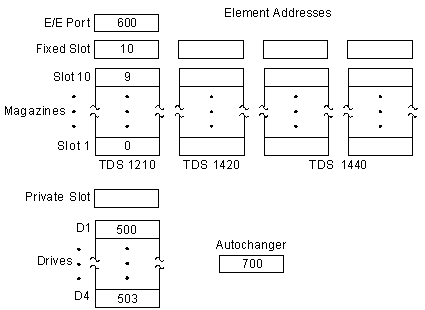

Table 78. Tandberg 1210, 1420, or 1440 TDS QIC

Device SCSI ID Device Name
Tape drive 1 (element 500) __________ /dev/mt__
Tape drive 2 (element 501) __________ /dev/mt__
Tape drive 3 (element 502) __________ /dev/mt__
Tape drive 4 (element 503) __________ /dev/mt__
Autochanger (element 700) __________ /dev/lb__

[ Top of Page | Previous Page | Next Page | Table of Contents | Index ]

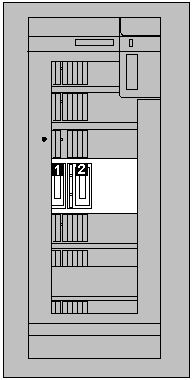

Device	SCSI ID	Device Name
Tape drive 1 (element 131)	__________	/dev/mt__
Tape drive 2 (element 132)	__________	/dev/mt__
Robot	__________	/dev/lb__

The number of storage slots and drives varies depending on the configuration of the library.

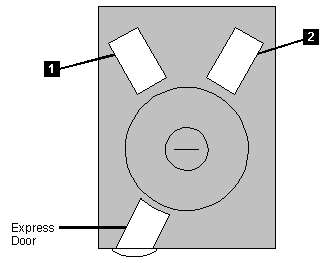

Device	SCSI ID	Device Name
Tape drive 1 (element 100)	__________	/dev/mt__
Tape drive 2 (element 101)	__________	/dev/mt__
Robot	__________	/dev/lb__

With the current ADSM device drivers, cartridges cannot be transferred or exchanged between the two independent changers in a dual library system. Only one side can be accessed at a time. (This diagram is for reference only. Refer to the product documentation for your library because your element addresses and drive configurations may differ.)

Device	SCSI ID	Device Name
Tape drive 1 (element 1)	__________	/dev/mt__
Tape drive 2 (element 2)	__________	/dev/mt__
Robot	__________	/dev/lb__

Device	SCSI ID	Device Name
Tape drive 1 (element 5)	__________	/dev/mt__
Tape drive 2 (element 6)	__________	/dev/mt__
Robot	__________	/dev/lb__

The number of storage slots and drives varies depending on the configuration of the library. The Kodak System 2000 ADL accepts 10.2GB and 14.8GB media. The formats are DRIVE, 10200MB, and 14800MB. If the Kodak System 2000 ADL contains mixed media, the 10200MB and 14800MB media have the same effect as the DRIVE media. The new keywords are described in the product documentation for the Kodak System 2000 ADL.
